Flexible Intermediate Bulk Containers (FIBCs), commonly known as bulk bags, jumbo bags, or super sacks, serve as an industry standard for storing and transporting bulk powders, granules, and agricultural materials. Because a single filled bulk bag weighs between 1,000 and 4,000 lbs ( $500\text{ to }2,000\text{ kg}$ ), improper Stacking Bulk Bags creates severe hazards, including stack collapse, inventory damage, and worker injuries.

To eliminate content gaps found in generic guides, this master safety manual outlines proven stacking methods, structural mechanics, bag geometry impacts, and essential maintenance protocols established under standard FIBC safe handling guidelines.

Safe Stacking Methods for Bulk Bags

Selecting the proper stacking method depends on warehouse layout, structural wall ratings, floor load limits, and the physical properties of the contained material. The Flexible Intermediate Bulk Container Association (FIBCA) describes 2 stacking methods in these terms:

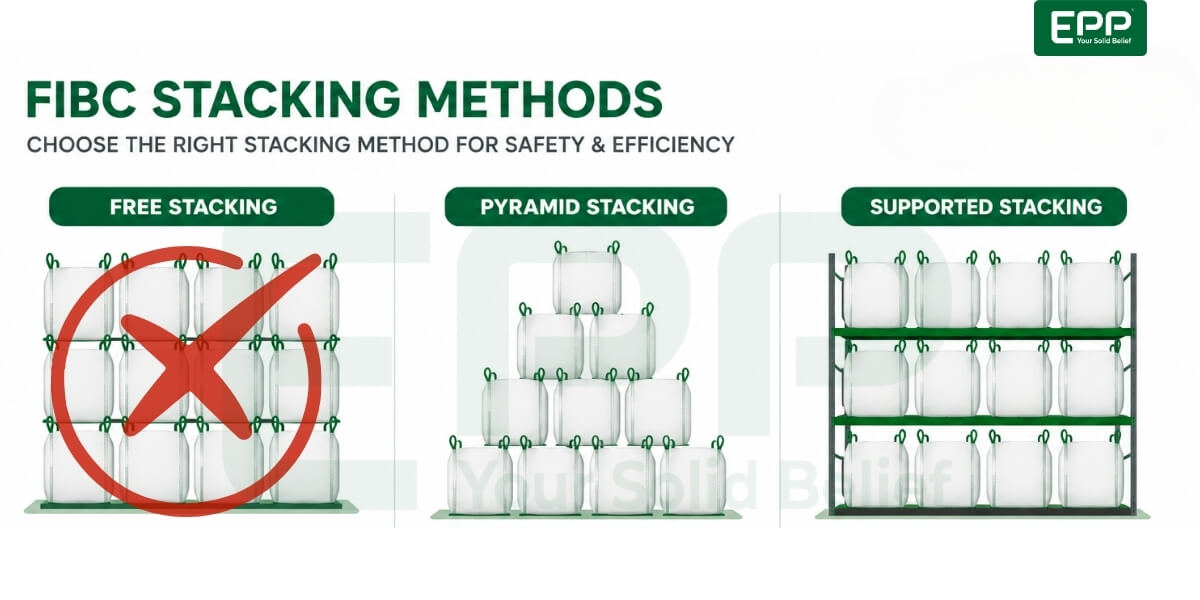

Comparison chart of safe FIBC bulk bag stacking methods for warehouse storage

Supported Stacking

Supported stacking relies on existing structural boundaries—specifically rigid, load-bearing retaining walls—to provide lateral support. Under this method of stacking Bulk Bags, bags are stacked in straight vertical columns directly against two or three engineered retaining walls. The walls absorb outward lateral pressure, preventing bag tipping or wall bulging. This technique maximizes vertical space in high-density facilities, shipping containers, and transport trailers. However, non-structural drywall or thin interior partitions must never be used as supports.

Pyramid Stacking

When solid retaining walls are absent, pyramid stacking serves as the universally recommended free-standing storage method. Bags are built in interlocking tiers where each upper layer rests inward from the tier below it. Safety standards dictate that every bag positioned above the base layer must sit on parts of at least four lower bags. For instance, a $3 \times 3$ base (9 bags) supports a $2 \times 2$ second tier (4 bags), topped by a single bag. This stepped tier structure shifts weight downward and inward toward the center of gravity, effectively preventing edge sliding.

Methods of Stacking Bulk Bags Comparison

Feature / Metric	Supported Stacking	Pyramid Stacking	Block Stacking
Wall Requirement	Requires 2–3 load-bearing walls	Free-standing (No walls needed)	Free-standing
Space Utilization	Maximum vertical density	Moderate (Requires wide floor base)	High (Efficient square layout)
Stability Level	High (Lateral wall support)	Highest (Inward center of gravity)	High (Requires baffle/cubic bags)
Recommended Height	3–4 bags high	Tier-dependent (Base-to-height ratio)	2–3 bags maximum
Ideal Bag Geometry	Standard or Circular bags	All bag types	Form-stable / Baffle Bags (Q-Bags)

Common Mistakes to Avoid When Stacking Bulk Bags

Avoiding critical operational errors protects personnel and preserves inventory integrity:

Pushing or Dragging Bags Into a Stack: Never use forklift tines or loader buckets to push a bulk bag into position. Pushing creates high frictional force that tears the woven polypropylene fabric or displaces adjacent bags, undermining stack stability.

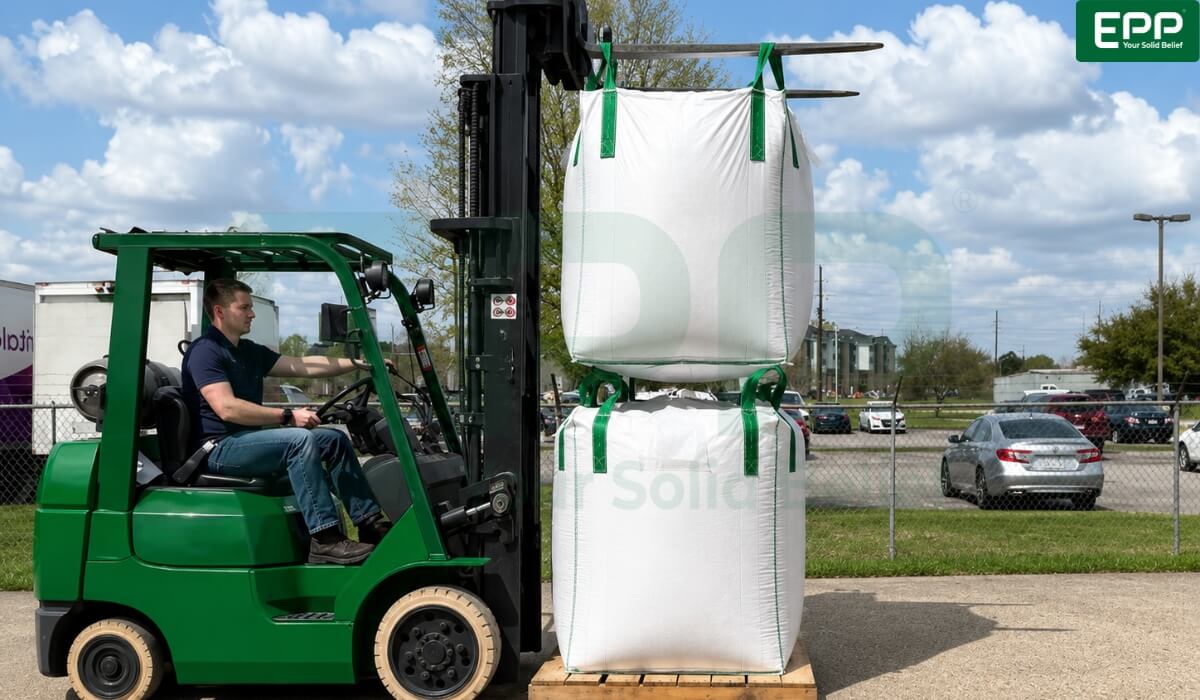

Forklift operator handling stacked industrial FIBC bulk bags.

Pulling Single Bags From Lower Tiers: If a specific super sack is needed from a lower level, do not attempt to pull it out from the middle or bottom. Always de-stack the upper layers top-down until the target bag is safely accessible.

Exceeding the Safe Height-to-Width Ratio: When filling and Stacking Bulk Bags, the height-to-base ratio of an individual bag should not exceed $2:1$ :

Aspect Ratio = Bag Height\Width or Diameter </= 2:1

Exceeding a $2:1$ ratio makes the bag top-heavy and prone to leaning or tipping under weight.

Ignoring Aerated or Flowable Materials: Powdered materials (like fine flour, talc, or chemicals) trap air during high-speed filling. Stacking aerated bags immediately causes them to settle unevenly over time as air escapes, resulting in leaning stacks (“leaning towers”).

Stacking Non-Stackable FIBC Designs: Not all bulk bags are designed to support weight from above. Always check the manufacturer label for stackability certification.

Common Mistakes to Avoid When Stacking Bulk Bags

Stacking polypropylene FIBC jumbo bags in a warehouse for bulk material handling and efficient storage

Essential Safety Instructions for Stacking Bulk Bags

Verify Subgrade & Floor Capacity: Ensure the concrete slab or ground surface is clean, dry, level, and rated to handle the concentrated weight of the entire stack.
Pallet Sub-Bases: Place wooden or plastic pallets between layers when column or block stacking. Ensure pallets are free from protruding nails, splinters, or sharp edges that could puncture the bottom of the FIBC.
De-Aeration & Vibration Settlement: Vibrate or allow powdered materials to settle before closing top spouts. De-aeration creates a flat, firm top surface that provides an even foundation for upper tiers.
Forklift Travel Guidelines: When transporting bags with forklift equipment, tines must be spaced correctly to prevent lateral strain on loops—understanding how industrial super sacks are lifted ensures smooth positioning and keeps the load carried low to the ground with the mast tilted slightly backward.

Maintenance and Inspection of Stacked Bulk Bags

Safety routines require continuous visual oversight. Daily audits should inspect active storage bays for off-center bags, creasing, or tilting. Any stack exhibiting a visible tilt must be quarantined and dismantled immediately.

Inspectors must also monitor bags for plastic creep—a continuous stretching of polypropylene fibers under prolonged tension. Signatures of creep include bulging bag bases, strained seams, and stretched lifting loops. Knowing how to preserve FIBC bulk bags in your warehouse helps extend bag lifespan and prevents material degradation. If a lower bag suffers a tear or puncture, personnel must clear the area immediately and use a forklift to remove all overhead weight before attempting repairs or bag replacement.

Frequently Asked Questions

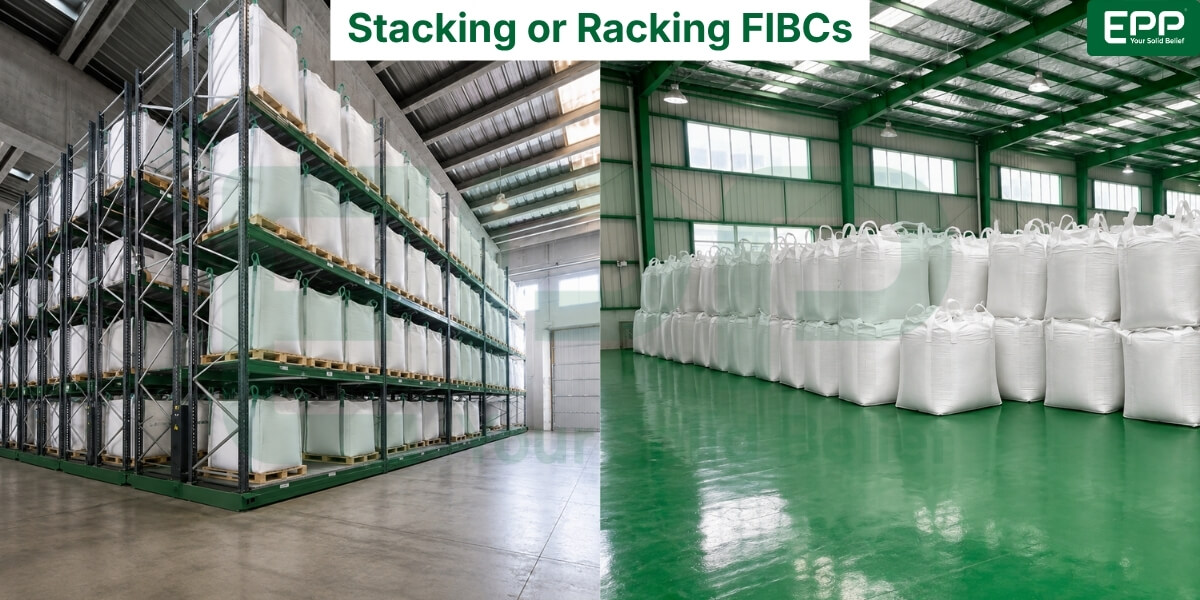

Stacking or Racking: Which is the best choice for super sack storage?

The choice depends on inventory turnover, available floor space, and material type. Stacking bulk bags requires zero capital expenditure on steel racking and maximizes floor space utilization, making it ideal for high-volume, uniform inventory with rapid turnover. However, selective bulk bag racking uses specialized frames or wire decks that eliminate weight compression on bottom bags, allow direct access to any individual bag (First-In, First-Out), and enhance long-term storage safety.

Which is better Stacking or Racking Jumbo bags?

What are the essential equipment and tools for secure Stacking Bulk Bags?

Facilities rely on forklifts equipped with rounded-edge tines or protective sleeve covers to prevent loop tearing. Spreader bars and dedicated lifting frames ensure lifting loops remain vertical, preventing damaging side forces during placement. Additionally, double-sided pallets distribute upper bag weight evenly, while vibrating settling tables densify powdered products during the filling phase.

Is bag orientation important when stacking FIBCs?

Bag orientation is critical for safety and accessibility. Lifting loops must be folded flat or tucked inward before placing an upper bag, as upright loops create uneven pressure points that tip upper bags or puncture fabric. Additionally, discharge spouts, tie-offs, and side seams should face inward or toward designated inspection aisles so operators can verify seal security without disturbing the stack.

What is the perfect storage environment for stacked jumbo bags?

The ideal environment is an indoor, climate-controlled facility with dry, level concrete floors protected from rain and standing water. Direct sunlight and unshielded UV lights must be avoided, as ultraviolet radiation weakens polypropylene fibers over time. Adequate ventilation is also necessary to prevent moisture condensation between closely packed bags.

Mastering bulk bag safety comes down to three non-negotiable principles: choosing the right stacking bulk bags method (Supported or Pyramid) based on your facility’s layout, maintaining a strict height-to-base aspect ratio under $2:1$ , and enforcing continuous visual inspections to prevent plastic creep and leaning stacks. By avoiding critical operational errors—such as dragging bags across floor surfaces, pulling items from middle tiers, or stacking aerated materials without settling—you protect your workforce from workplace hazards while optimizing valuable vertical storage space.
