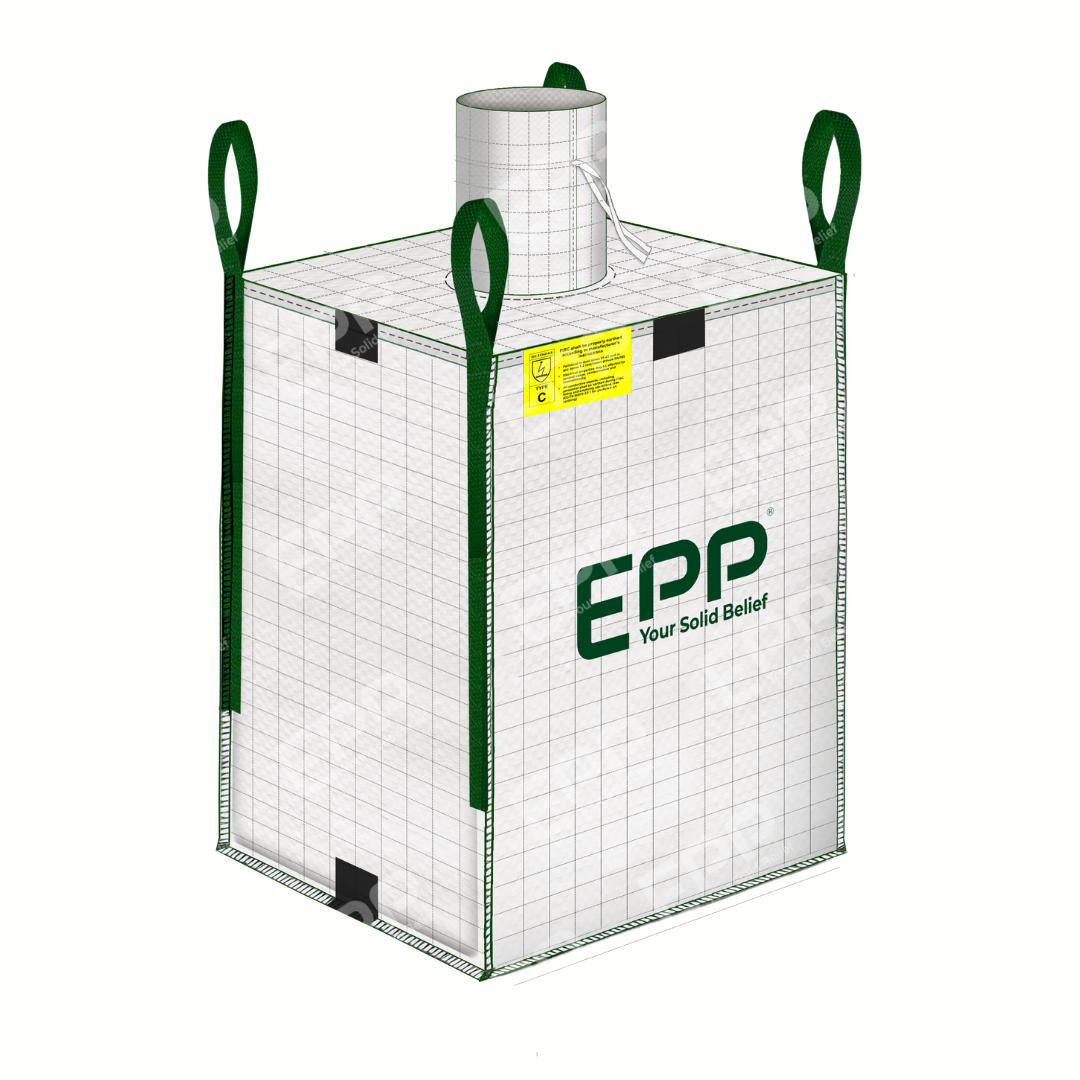

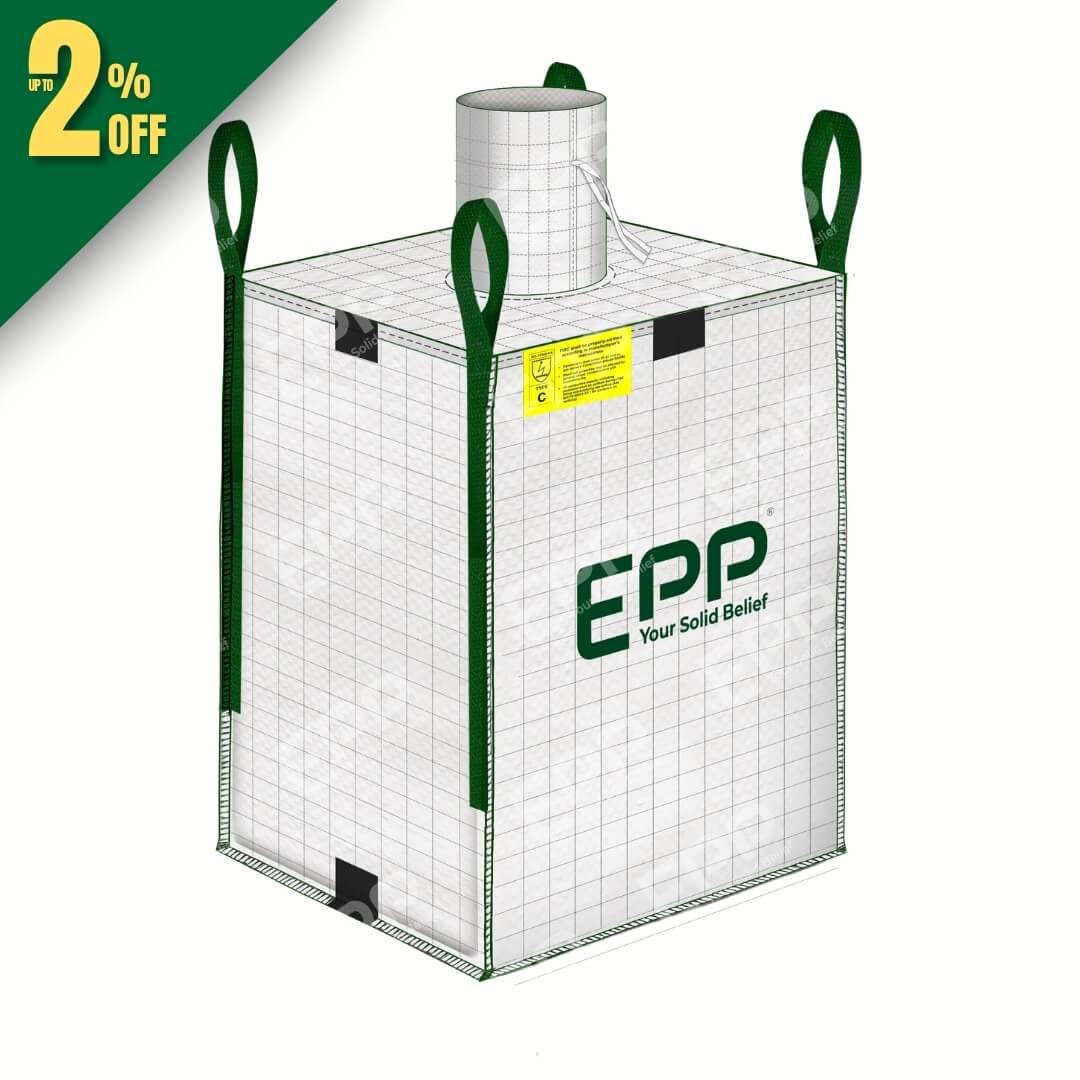

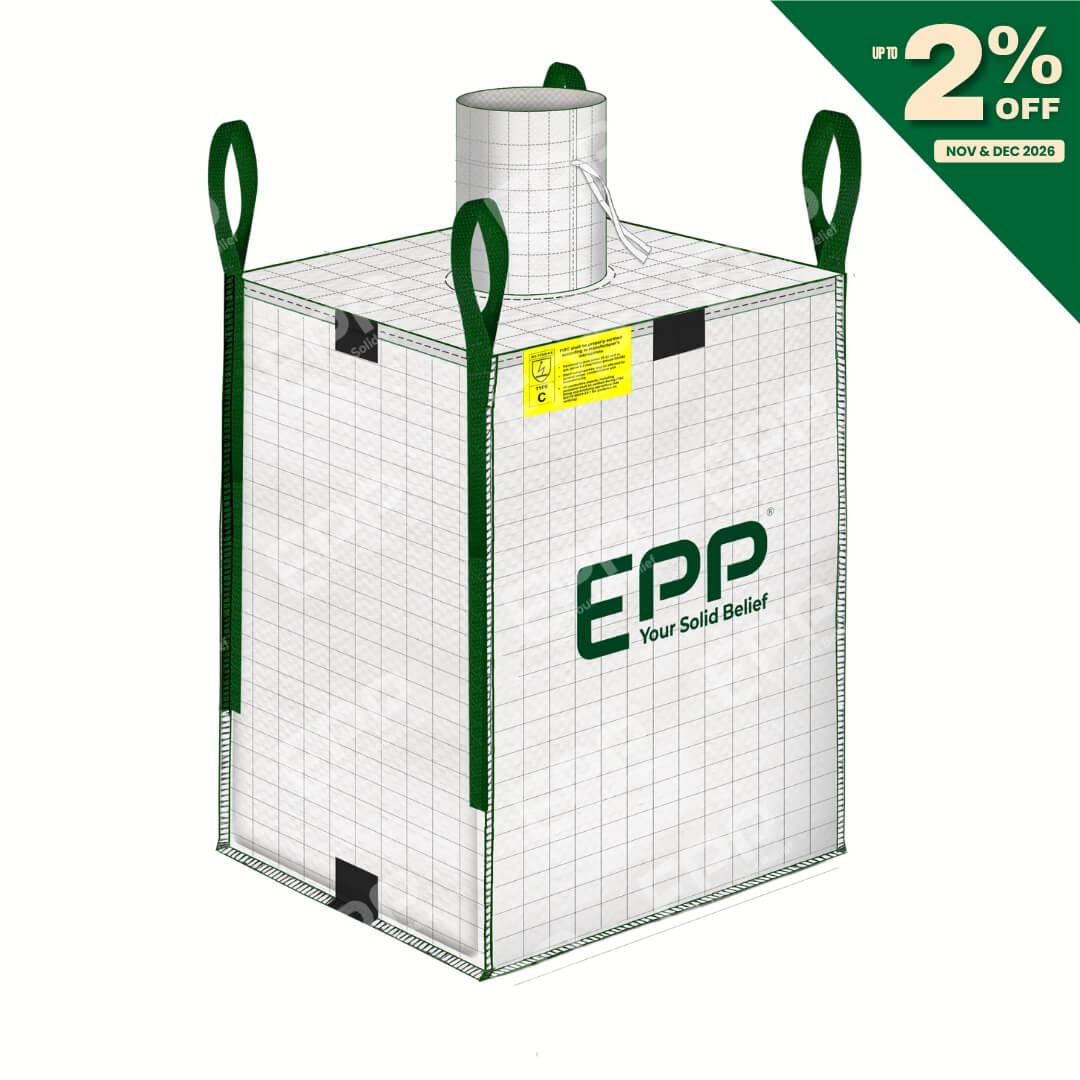

FRAS Type C FIBC bags

In modern industrial processing, moving dry bulk solids—such as fine chemical powders, pharmaceutical intermediates, and metallic dusts—presents significant operational hazards. High-velocity filling and discharging cycles generate rapid friction against polymer container walls, producing intense triboelectric static charges. In ATEX-rated or combustible environments containing flammable gas vapors or dust clouds, an unmanaged electrostatic spark can trigger a catastrophic dust explosion.

Compounding this hazard, standard woven polypropylene (PP) packaging acts as a petroleum-based fuel source if a fire ignites nearby, rapidly spreading flames across warehouse facilities. FRAS Type C FIBC bags (Flame-Retardant Anti-Static Type C containers) were engineered to solve this dual-hazard dilemma. By integrating continuous electrostatic grounding paths with self-extinguishing polymer additives, these heavy-duty bulk containers deliver verified, dual-layer safety compliance for high-consequence global supply chains.

What is FRAS?

FRAS stands for Flame-Retardant Anti-Static. In industrial bulk packaging, FRAS describes materials engineered to mitigate two severe, co-existing hazards: electrostatic spark generation and fire propagation.

Standard woven polypropylene (PP) is inherently insulating and combustible. During high-speed filling or discharging of dry powders, friction creates static charges that can spark and ignite surrounding dust clouds or solvent vapors. Furthermore, standard PP acts as a petroleum-based fuel source during an industrial fire.

An FRAS Type C FIBC integrates a network of conductive yarns in standard big bags with flame-retardant (FR) additives blended directly into the resin, creating a container that dissipates static electricity safely to earth while self-extinguishing if exposed to open flames.

Technical Specifications of FRAS Type C FIBC Bags

The integration of flame-retardant masterbatch must be executed without raising the electrical resistance of the conductive grid or weakening the tensile strength of the PP fabric.

Advantages of FRAS Type C FIBCs

• Dual-Layer Risk Reduction: Eliminates electrostatic sparks via ground connection while preventing the bag fabric from feeding open flames or secondary fires.

• Self-Extinguishing Properties: Unlike standard PP fabric which melts into burning droplets, FRAS fabric forms a protective carbonaceous char layer and stops burning once the heat source is removed.

• Preserved Conductivity: Formulated so the flame-retardant additive package does not interfere with the electrical path of the interwoven carbon grid.

• Regulatory & Insurance Compliance: Meets stringent international fire safety and explosion-prevention codes required in high-consequence operating environments.

• Structural Integrity: Maintains required load-bearing tensile strength without becoming brittle from additive loading.

Critical Industries Requiring FRAS Type C FIBC bags

• Specialty & Petrochemicals: Processing plants and refineries handling synthetic resins, organic pigments, chemical catalysts, sulfur powders, and pulverized coal operate under constant explosion threats. In these volatile ATEX-classified environments, high-speed pneumatic loading generates intense static friction alongside flammable solvent vapors, making dual-protection packaging essential.

• Mining & Metal Powders: Refineries transporting reactive metallic dusts—such as pulverized aluminum, zinc, or magnesium—face severe exothermic oxidation risks. A single static discharge can trigger violent metallic dust explosions; FRAS containers isolate charges while preventing high-heat thermal propagation.

• Pharmaceutical Cleanrooms: Facilities processing fine active pharmaceutical ingredients (APIs) and dry organic intermediates demand strict contamination controls. FRAS Type C bags protect high-value cleanroom infrastructure by eliminating electrostatic discharge while meeting stringent international plant safety and fire-prevention standards.

Frequently Asked Questions About FRAS Type C FIBC Bags

Does the flame-retardant additive reduce the electrical conductivity of the bag?

No. High-grade FR masterbatch formulations are designed to work synergistically with the conductive carbon or silver yarns, ensuring point-to-point resistance remains well below the 10^8 Ohms threshold required by IEC 61340-4-4.

Can an FRAS Type C bag be used safely without grounding?

No. Flame retardancy stops the fabric from burning, but it does not dissipate static electricity automatically. Physical grounding via earthing tabs is mandatory during every handling cycle to prevent static sparks.

How does an FRAS Type C bag react when exposed to direct fire?

When exposed to direct flames, the FR additives react to starve the combustion zone of oxygen and form a protective char layer over the fabric. It will not melt into flaming droplets and will self-extinguish within seconds after the flame source is removed.

What is the difference between an FRAS Type C bag and standard conductive bulk bags?

Standard conductive bulk bags protect exclusively against electrostatic sparks, whereas FRAS Type C bags offer dual protection against both static sparks and open-flame ignition. While both bags feature interwoven carbon grids that maintain resistance below 10^8 Ohms under IEC 61340-4-4 to safely drain static charges when grounded, untreated polypropylene in standard bags will melt and feed an external fire.

Conclusion

FRAS Type C FIBC bags are an essential tool for ensuring the safe handling and transportation of fine powders in various industries. These conductive and fire-resistant bags effectively prevent brush discharge and resist ignition, mitigating the risks of explosions, fires, electrostatic shock, and environmental contamination. By choosing FRAS type C bulk bags, companies can ensure the safety of their workers, protect their equipment, maintain product quality, and comply with industry regulations.

For high-quality FRAS Type C big bags made in Vietnam, contact EPP Vietnam. We offer a wide range of type c big bags to meet your specific needs, ensuring that you have the right solution for safe and efficient powder handling in various industries. Our team of experts is dedicated to providing you with the best possible products and services, ensuring your complete satisfaction.
