Single Loop FIBC Bags

What Are Single Loop FIBC Bags?

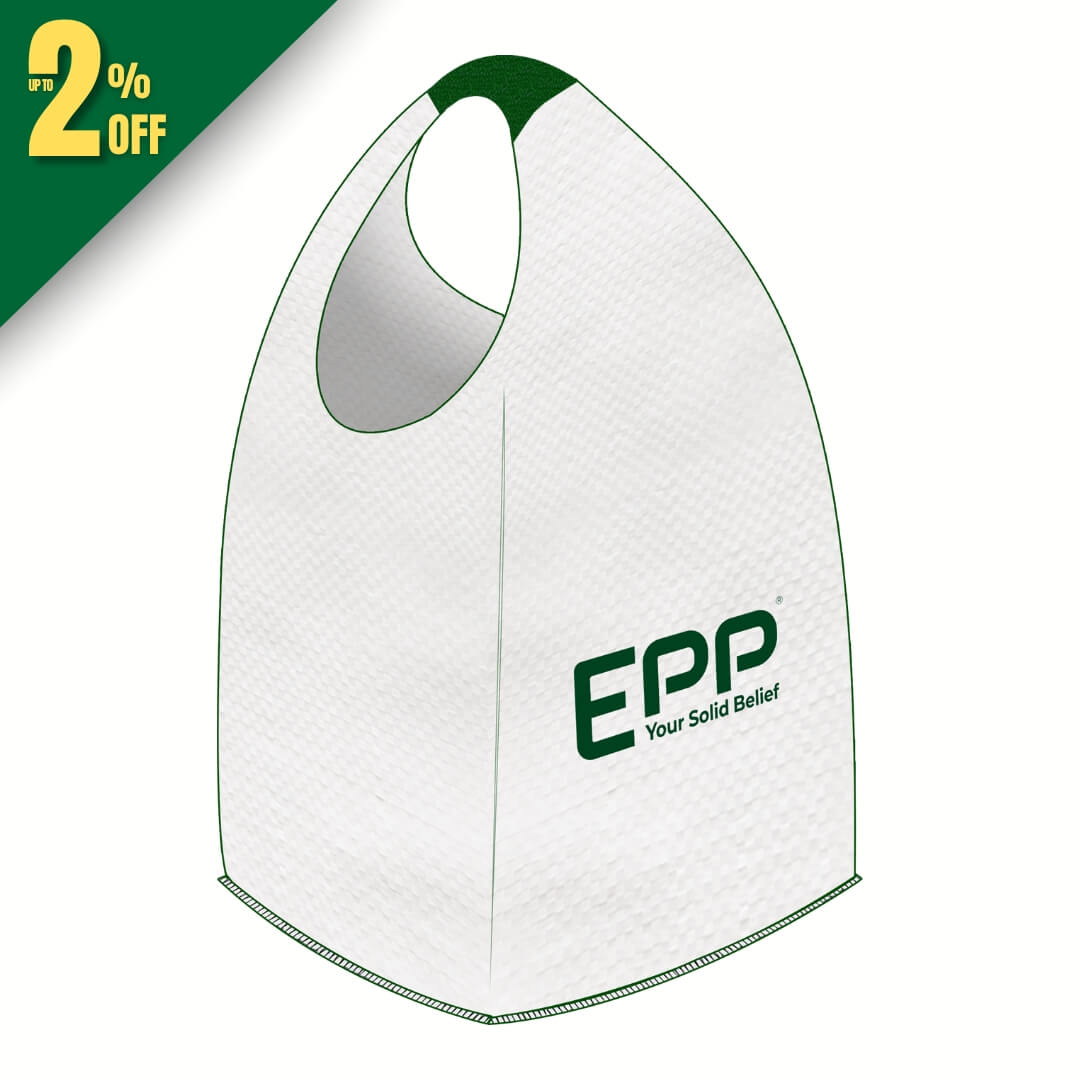

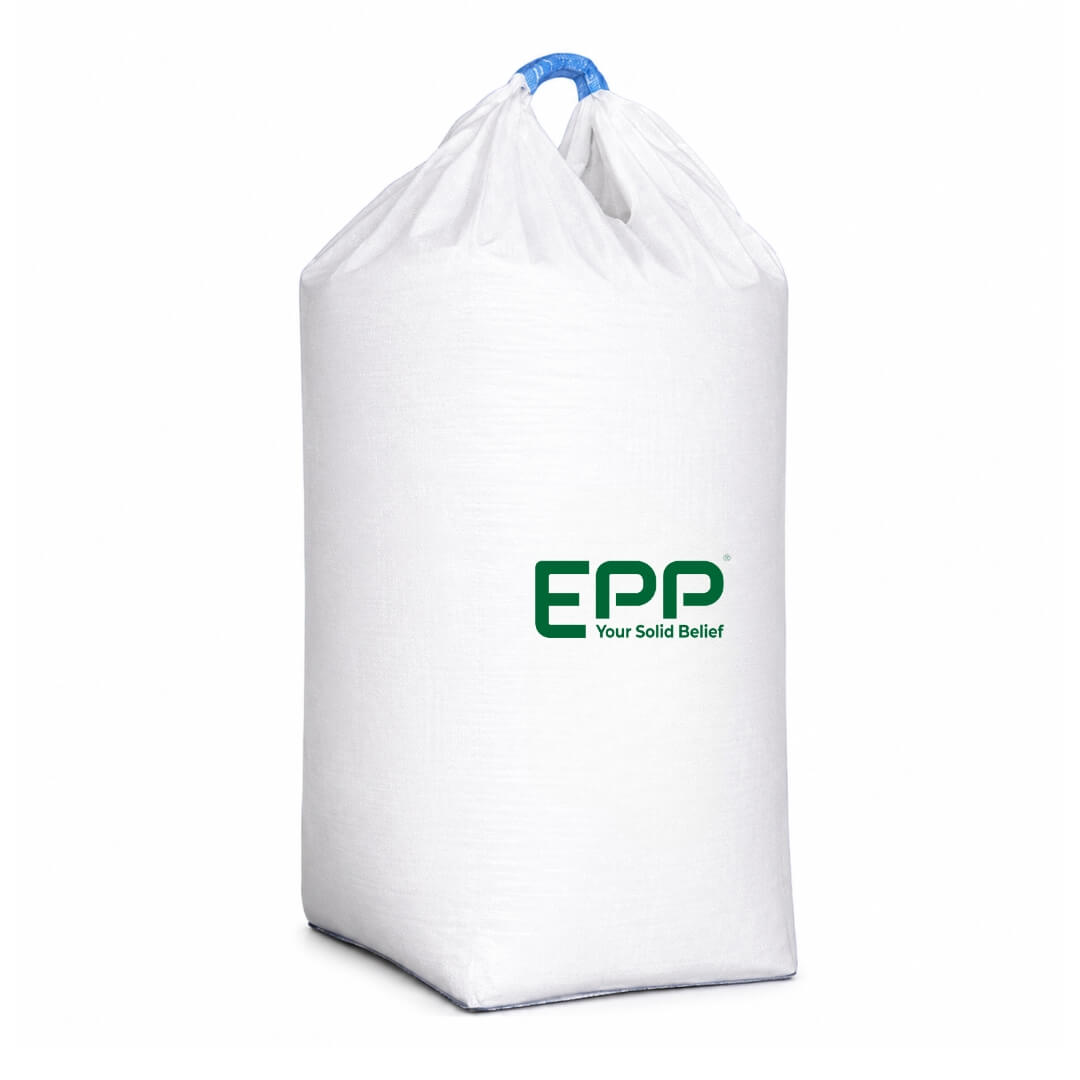

A single loop FIBC bag is a flexible intermediate bulk container woven from a seamless tubular polypropylene (PP) fabric body, where the main fabric extends upward to form a single, central lifting loop directly over the top of the container.

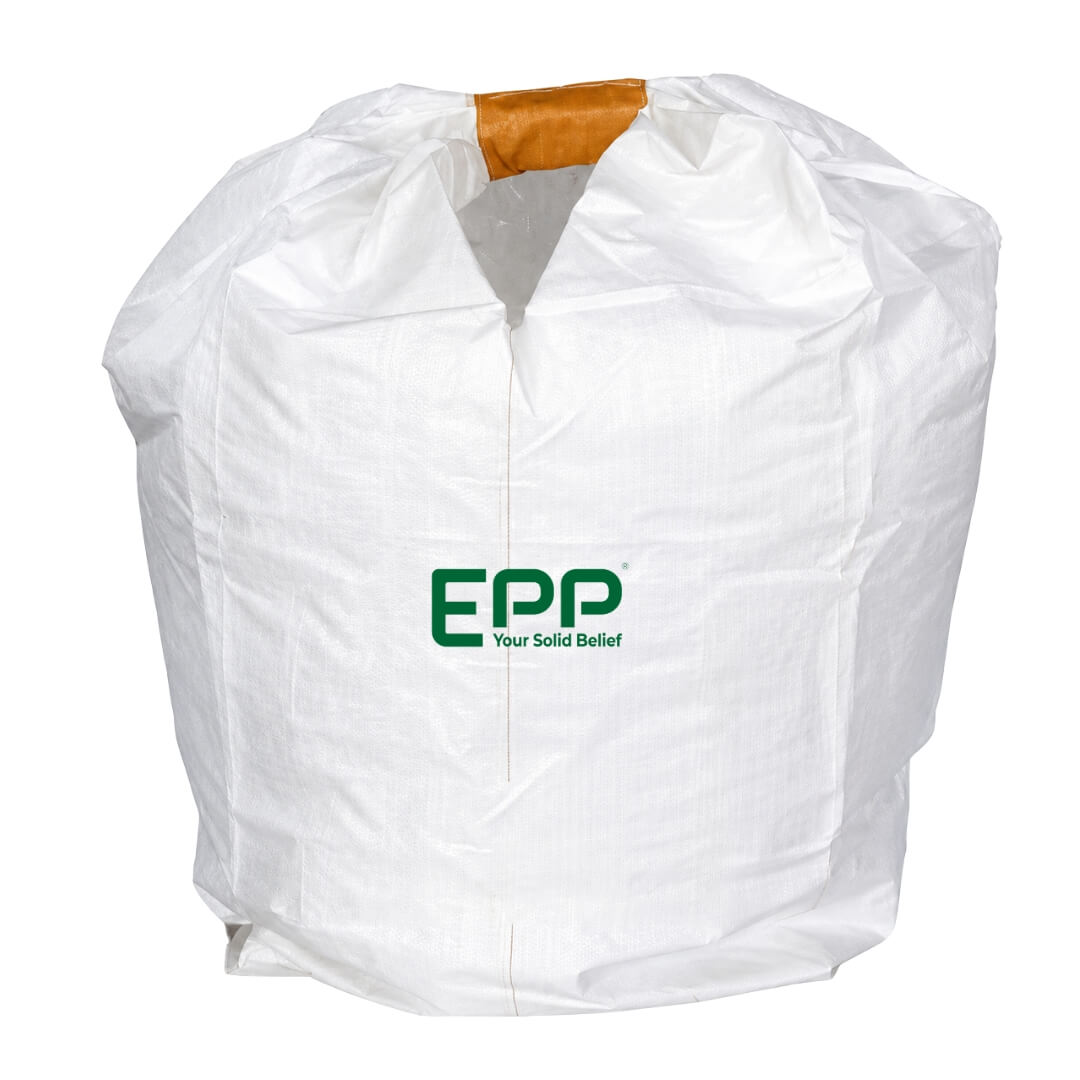

Unlike multi-panel Jumbo bags that rely on individual loop straps sewn onto four separate corners, a single loop big bag utilizes a continuous tubular construction. The top portion of the tube is gathered and encased in a durable, protective sleeve—often color-coded—creating an open central apex. This design utilizes single point lifting, allowing hooks, crane spreaders, or specialized forklift attachments to grab and transport the bag effortlessly without manual alignment.

Technical Specifications for Single Loop FIBC

The specification of a single loop bulk should be developed around the intended application rather than selected from bag dimensions alone. Two super sacks with similar external dimensions may require different fabric constructions, SWL, liner arrangements, or discharge systems depending on the material being packed and the handling conditions.

EPP Vietnam Buyer Tip: EPP Vietnam strongly advises industrial buyers to order single loop FIBC bags with distinct, color-coded loop sleeves (e.g., blue, green, red, yellow). In high-volume fertilizer plants or multi-grade chemical warehouses, reading fine-print labels on stacked bulk bags creates unnecessary delays and risk of human error. Using unique loop wrap colors allows floor operators and forklift drivers to immediately identify different product grades, batch types, or target SWL weight ratings from a distance.

Key Operational Advantages of Single Loop FIBC Bags

Integrating single loop bulk bags into your supply chain provides distinct operational and cost benefits:

High-Speed Automated Filling Lines: Single loop bags can be supplied in continuous rolls or pre-collated stacks specifically engineered for automated filling machinery. Automatic bag-hanging robotic arms can quickly hook the central open loop, drastically shortening fill-cycle times compared to positioning four separate corner loops.

Gang Lifting Capability: Because the bag centers itself under a single hook, forklifts fitted with multi-hook spreaders or port cranes can lift multiple single point lifting FIBC units simultaneously (3 to 5 bags at once), tripling loading speeds in fertilizer and mining operations.

Lower Unit Manufacturing Costs: Using a continuous tubular body with fewer separate sewing components reduces assembly labor, making one loop bulk bags one of the most cost-effective bulk containers on the market.

Optimal Moisture & Leak Protection: Pairing the seamless side body with an integrated polyethylene inner liner creates a complete barrier, making it the premier choice as a single loop FIBC granules big bag.

Single Loop vs. 2-Loop vs. 4-Loop FIBC Bags

Selecting the right bag geometry depends on your handling equipment, automated filling infrastructure, and product characteristics:

Where Single Loop FIBCs Excel?

The unique design of the single loop big bag makes it the dominant packaging standard across several heavy-volume bulk industries:

• Fertilizer Industry (NPK, Urea, Phosphate): High-speed production lines rely on single loop bulk bags to package hundreds of tons of granular fertilizer daily with minimal labor intervention.

• Plastics & Polymer Granules: Functioning as a high-efficiency granule bulk bag, it stores and ships polyethylene, polypropylene, and resin pellets without risking dust weeping or granule leakage.

• Agricultural Commodities & Seeds: Used for grain, seed, and animal feed transport. Uncoated breathable fabrics prevent internal condensation, while liner-equipped options protect sensitive agricultural inputs from humidity.

• Cement, Lime, & Mineral Aggregates: Demanding industrial powders and crushed minerals benefit from the central balanced lifting point, which reduces localized fabric tear risks during heavy crane maneuvers at ports and mining sites.

Common Mistakes When Buying Single Loop FIBC Bags

Selecting the Wrong Inner Liner Attachment Method:

When using a single loop FIBC granules big bag for dense powders or fine granules, buying loose-inserted PE liners can cause the liner to pull out and block discharge equipment. Specify glued or tabbed liners to lock the barrier in place.

Ignoring Forklift Attachment Compatibility:

Trying to lift a single loop bag with standard, sharp forklift tines without a rounded hook or protective sleeve can fray the lifting loop over time. Ensure your handling machinery uses smooth, rounded crane hooks or proper prong attachments.

Assuming One Size Fits All Automated Lines:

Automated roll-fed packaging lines require precise tolerances on bag dimensions, roll spacing, and sleeve stiffness. Failing to verify line specifications with your packaging supplier leads to machine jams and costly downtime.

People also ask about Single Loop FIBC Bags

1. Can a single loop FIBC be lifted by a forklift?

Yes. While a single loop bag has one central lifting point, a forklift can easily pick it up using a single fork tine, a specialized central crane-hook attachment, or a multi-hook spreader bar designed to transport several bags at once.

2. Can single loop FIBC bags have a PE liner?

Yes. Single loop bulk bags are frequently customized with internal Polyethylene (PE) liners (LDPE or HDPE) to protect moisture-sensitive materials like fertilizers, seeds, and chemical powders. Liners can be loose-inserted, glued to the outer wall, or sewn into the top loop seams.

3. Can single loop FIBC bags be customized?

Absolutely. EPP Vietnam provides full customization, including tailored body dimensions, custom Safe Working Loads (500 kg – 2,000 kg), filling spouts, discharge bottoms, custom fabric GSM, UV stabilization, color-coded loop sleeves, and high-quality flexographic brand printing.

4. Are single loop bulk bags suitable for automated filling lines?

Yes, they are the industry standard for high-speed automated packaging lines. Single loop FIBC bags can be supplied in continuous rolls or stacked formats, allowing automated robotic arms to grab the upright central loop and position the bag under filling spouts automatically without manual labor.

Switching to single loop FIBC bulk bags is one of the most effective ways to accelerate your packaging line throughput, lower labor costs, and protect high-value granules and chemical products. Whether you operate an automated roll-fed filling system for fertilizers or need high-volume, export-grade granule bulk bags, selecting the right specifications is critical to supply chain success.

As a trusted international packaging partner, EPP Vietnam bridges global enterprises with Vietnam’s top ISO and BRCGS-certified manufacturing facilities. We manage every step—from technical engineering and rigorous ISO 21898 quality control to export logistics—ensuring your single loop FIBC bags arrive on time, within budget, and built to precise international safety standards.

Ready to optimize your bulk packaging operations?
