Bulk bags with discharge spout
Bulk bags with discharge spout are a game-changer in the world of material handling, offering a convenient and efficient way to manage large quantities of bulk materials.
In high-volume material handling, a standard flat-bottom bulk bag often creates more headaches than solutions. Plant operators face dusty workplace hazards, constant material waste from cut bags, and the dangerous risk of slitting open 1,000 kg+ heavy sacks by hand.
As a leading supplier of FIBC bags in Vietnam, EPP Vietnam delivers Bulk bags with discharge spout to solve these exact operational friction points. Designed for clean, controlled, and effortless unloading, a bottom spout transforms your discharge station into a dust-free, high-efficiency operation—protecting your workers while keeping every ounce of your raw material where it belongs.
What are Bulk Bags with Discharge Spout?

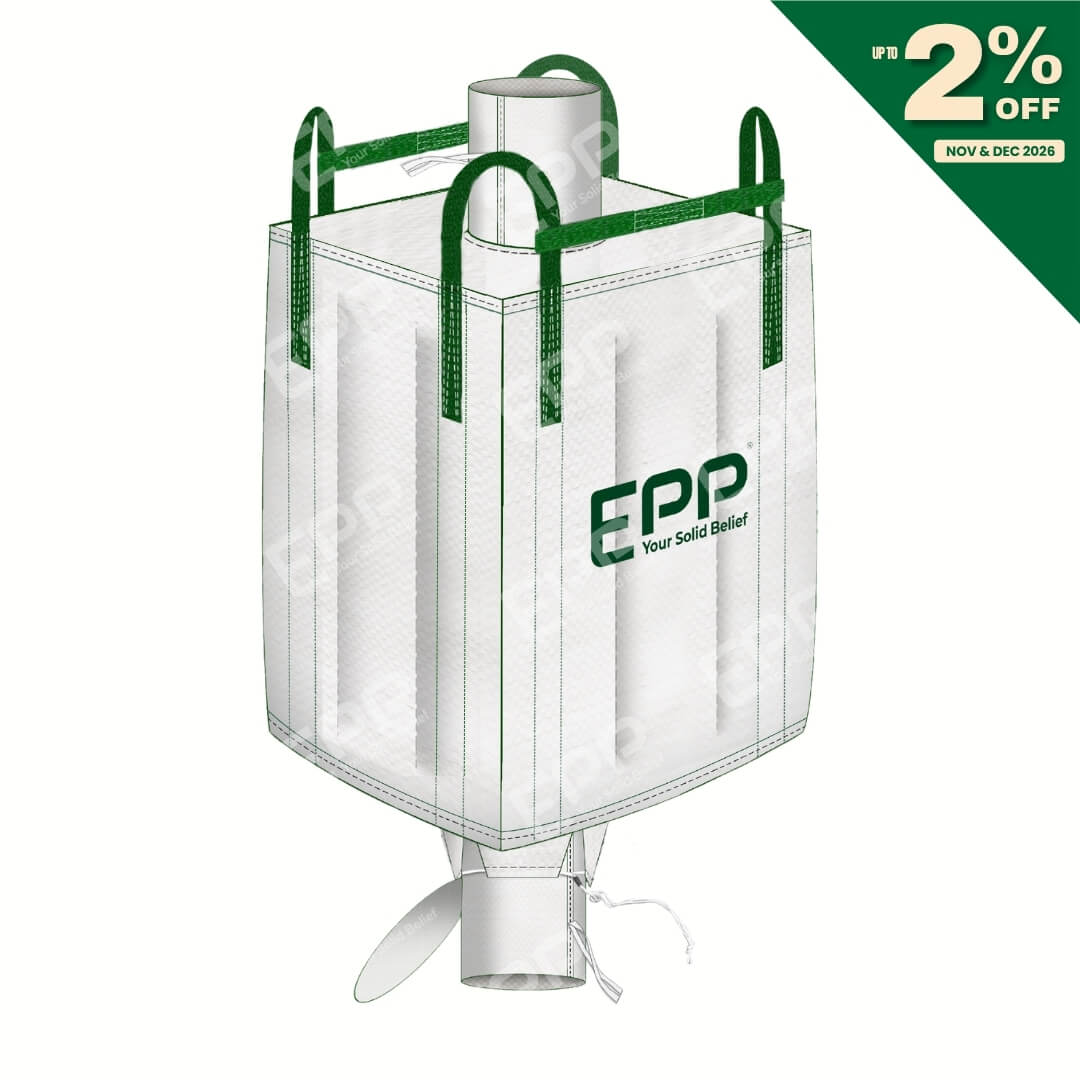

A bulk bag with a discharge spout—commonly known as a spout bottom bulk bags or super sack—is a heavy-duty industrial bag designed with a cylindrical fabric tube sewn onto its bottom surface. Unlike flat-bottom bulk bags that require cutting to release materials, a discharge spout bag allows plant operators to safely drain dry bulk goods (powders, granules, resins, and agricultural products) in a clean, controlled, and efficient manner.
Technical Specification of Bulk Bag Bottom Spouts
| Top | Full open/Filling spout/Top skirt/Duffle |
| Bottom | Spout diameter 14 in (35 cm) or 18 in (45 cm)/ Spout length: 18 in (45 cm) |
| Liner | Liner(HDPE, LDPE) or Customized |
| Lifting loop | Cross-corner loops/4 Point 2 Strap lifting loop/Double Stevedore Strap
/with belt/Fully belt loop/Loop in loop |
| Sewing | Plain/chain/chain lock with optional soft-proof |
| Ropes | 1 or 2 around the bag body/customized |
| SWL | 500-2000KG |
| SF | 5:1/6:1/or as customer’s requirement |
| Treatment | UV treated or not UV treated |
| Surface Dealing | Coated or plain,printing or no printing |
| Usage | Storage and packing
Mine,ore,fertilizer,chemical,grain,wheat,maize,rice, peanut,sugar,salt,agriculture,building |
| Processing | Yarn drawing-Circular weaving/Webbing-Quality inspection-Coating-Film blowing-Cutting-Printing-Sewing-Checkout-Packaging-Transportation |
To protect the discharge spout during transit and prevent accidental opens, bottom spouts are equipped with protective closure mechanisms:
-
Star / Iris Closure: A fabric petal layer sewn over the spout that acts as a structural cradle to hold the spout flat against the bottom of the Bulk bags with discharge spout.
-
Petal / Pyjama Closure: A rectangular or circular flap that wraps around the folded spout, protecting it from dirt, moisture, and abrasion during warehouse handling.
-
Protection Flap (Cover): A flat, heavy-duty fabric cover that fastens over the entire bottom area, providing a clean barrier when bags are stacked.
To explore a wide range of industrial packaging options, check out certified FIBC bags engineered for heavy-duty applications.
How a Discharge Spout Big Bag Optimizes Material Handling?
Integrating bottom discharge big bags into your supply chain delivers several operational advantages:
-
Controlled Material Flow: Operators can adjust or halt the flow of material mid-discharge by tightening the closure ties, enabling partial unloading across multiple hoppers.
-
Dust Containment & Workplace Hygiene: The cylindrical spout attaches directly into receiving hoppers or pneumatic conveying systems, preventing fine particulate dust from escaping into the facility.
-
Operator Safety: Eliminates the hazards associated with manually slitting heavy bags under suspended loads.
-
Waste Reduction: Smooth, conical flow dynamics reduce material retention, ensuring maximum product yields with minimal leftover residue.
Selecting the Right Bulk bags with discharge spout on Material Characteristics
Matching the spout configuration to your product’s flow properties prevents bridging, clogging, and dust leakage:
-
Fine Powders (e.g., Titanium Dioxide, Starch, Fine Chemicals): Requires coated polypropylene fabric combined with dust-proof (sift-proof) seam stitching along the spout joint to prevent fine particles from weeping through needle holes.
-
Coarse Granules & Free-Flowing Pellets (e.g., Plastic Resin, Seeds, Grains): Functions efficiently with standard 14 in or 18 in uncoated discharge spouts using standard ties.
-
Bridging-Prone Materials (e.g., Cohesive Powders, Moist Aggregates): Requires an oversized discharge spout (20 in to 24 in diameter) or a conical bottom design to ensure smooth gravity discharge without manual agitation.
Step-by-Step Safe Discharge Protocol for FIBC Bulk Bags Bottom Spout
Lift the bulk bag using all four lifting loops attached to a forklift or hoist spreader bar. Position the bag directly over the receiving hopper or discharge station. Ensure no personnel stand directly underneath the suspended bag.
Reach under the bag from the side and lower the discharge spout into the inlet hopper. If using a dust-tight discharge station, clamp the spout neck to the receiving ring.
Untie or unbuckle the outer protective closure (Star, Petal, or Flap) to expose the main discharge spout and its internal tie.
Slowly release the inner discharge tie while standing safely to the side. Allow gravity to empty the contents. Adjust or retie the cord if partial discharge is required.
Common Questions About Bulk Bags with Discharge Spout
1. How do I prevent fine powders from leaking through the spout seams?
For fine powders (like titanium dioxide, starch, or fine chemicals), standard needle stitching creates micro-perforations that cause dust weeping. To prevent this, request a discharge spout engineered with coated polypropylene fabric combined with dust-proof (sift-proof) felt/filler cord sewing along the spout attachment seams, or integrate an internal polyethylene (PE) liner.
2. Can a discharge spout bulk bag be re-closed if I don’t need the whole load?
Yes. Unlike flat-bottom bags that are destroyed upon cutting, a spout-bottom FIBC bags gives operators full flow control. By tightening the inner discharge tie cord before the bag is completely empty, you can halt the material flow, re-tie the spout safely, and store the remaining product for later use.
3. How does a discharge spout protect my workers from accidents during unloading?
Slitting the bottom of a heavy 1,000 kg – 2,000 kg suspended bulk bag forces workers to reach underneath a dangerous overhead load. A discharge spout allows operators to reach safely from the side, attach the spout to the receiving hopper, and release the ties without ever standing directly underneath the bag.
4. Which bottom closure type (Star, Petal, or Protection Flap) is best for my operation?
It depends on your warehouse and stacking requirements:
-
Star / Iris Closure: Best for providing structural support beneath the spout to hold heavy loads flat.
-
Petal / Pyjama Closure: Best for protecting the folded spout from dirt, moisture, and ground abrasion during transport.
-
Protection Flap (Cover): Best if you stack bags on top of each other, providing a clean, flat fabric shield across the entire bottom area.
Conclusion
Incorporating bulk bags with discharge spouts into your operations can significantly enhance efficiency, reduce waste, and improve safety. With various discharge spout options available, you can tailor your choice to meet specific needs, ensuring optimal performance and cost-effectiveness.
Partnering with EPP Vietnam—a leading supplier of FIBC bags in Vietnam—gives global distributors and industrial plants access to premier packaging solutions backed by over 20 years of supply chain leadership. As a comprehensive sourcing and quality assurance partner, EPP Vietnam coordinates with top-tier, ISO-certified manufacturing facilities across Vietnam.
Contact EPP Vietnam Co., Ltd today to discover how our solutions can elevate your material handling processes, providing you with the reliability and efficiency you need.
