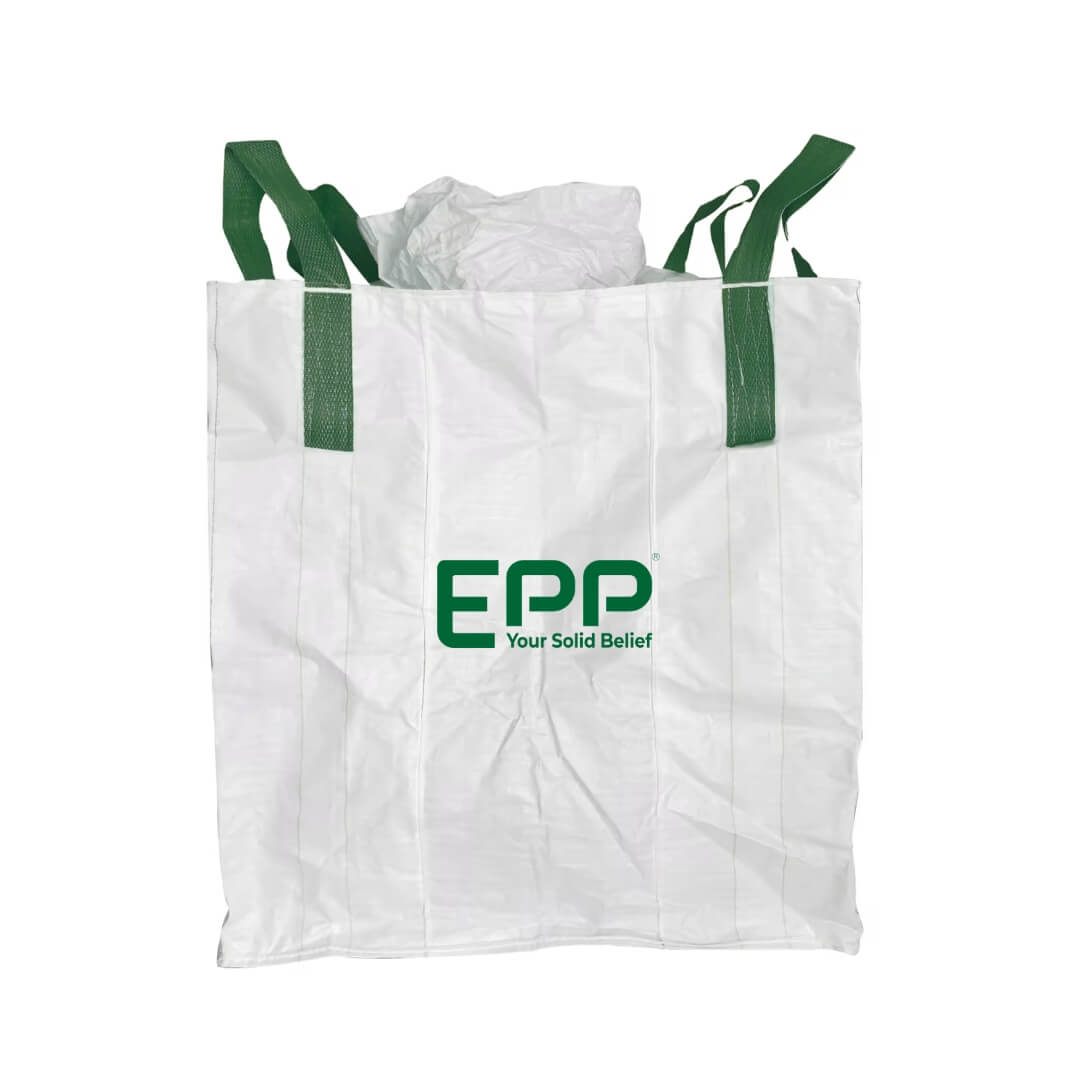

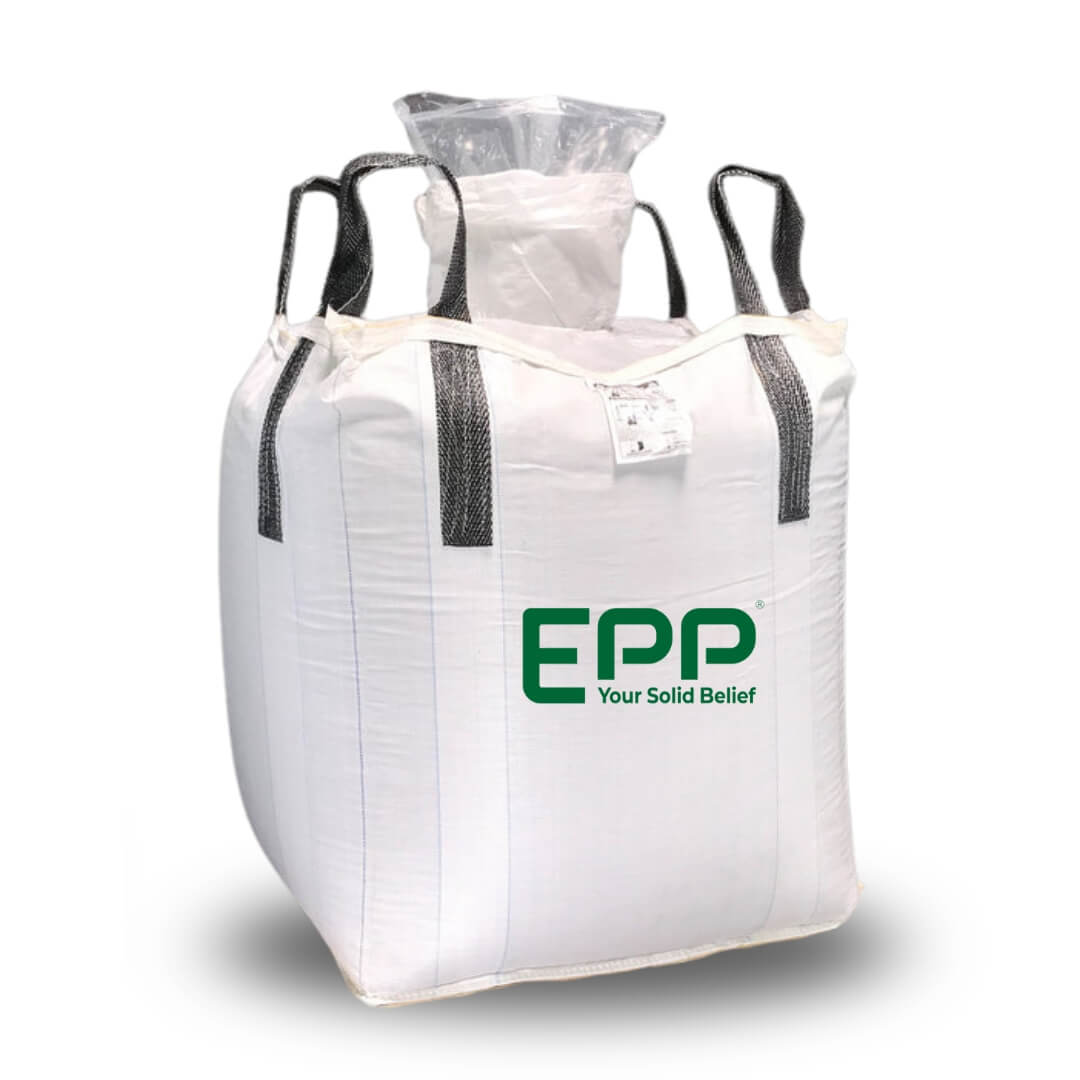

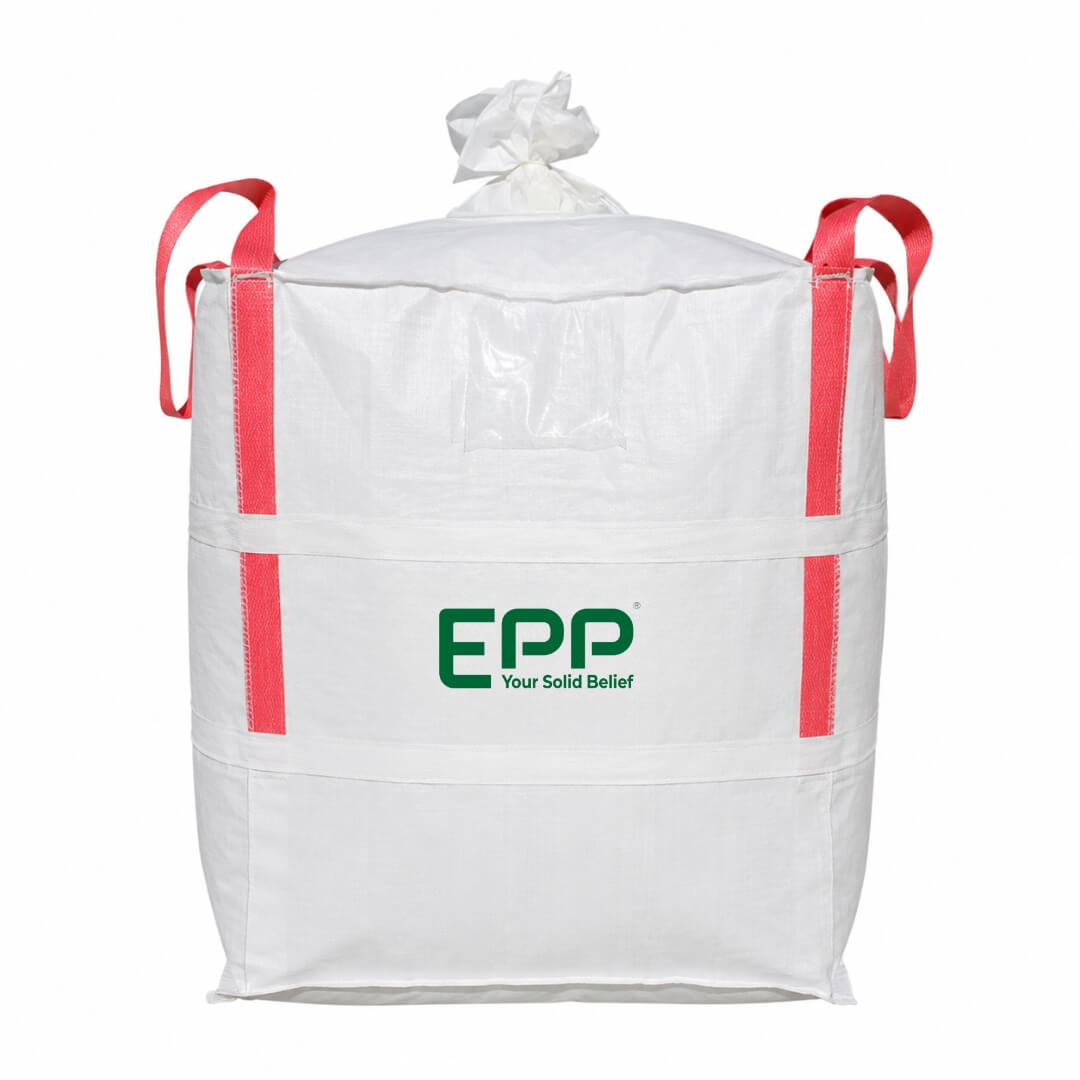

Spout Top Bulk Bags
Spout top bulk bags represent the industry standard for dust-controlled, automated, and high-efficiency filling operations. Constructed with a cylindrical inlet tube sewn onto a covered top deck panel, these bulk bags create a closed-loop connection with automated hopper chutes, preventing product loss and maintaining workplace hygiene.
As a premier manufacturer and direct exporter of industrial packaging, EPP Vietnam designs and produces ISO-certified, heavy-duty fibc bags with fill spout engineered to withstand demanding safe working loads (1000-2000kg) while fitting seamless connection setups across global manufacturing facilities.
1. Technical Specifications of Spout Top Bulk Bags
Choosing the correct container requires aligning top-spout geometry, fabric density, loops, and liner protection with your plant’s filling equipment and material bulk density. Below are the primary engineering options supplied by EPP Vietnam:
| Engineering Parameter | EPP Vietnam Manufacturing Standards | Operational Benefit |
| Main Body Style | Circular / Tubular, U-Panel, or 4-Panel Heavy-Duty Woven PP | Maintains vertical integrity and minimizes side bulging under load. |

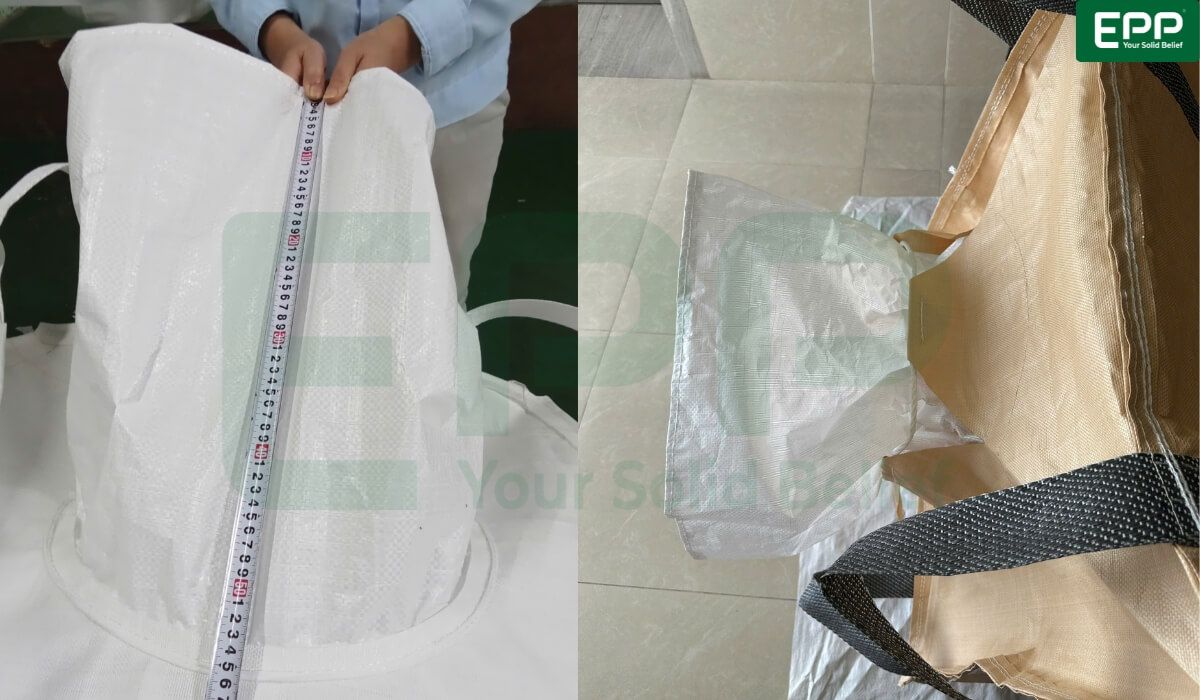

| Standard Spout Diameter | 14″ (35cm) or 18″ (45cm) | Fits industrial hopper nozzles to eliminate dust blowback. |
| Standard Spout Length | 18″ (45cm) to 20″ (50cm) | Provides ample length for secure tie-offs or pneumatic clamping. |
| Fabric GSM / Weight | 160GSM to 220GSM (Coated / Laminated or Uncoated) | Custom tear resistance based on abrasive or fine particle payloads. |
| Safe Working Load (SWL) | 1,000 kg(2,200 lbs) to 2,000kg (4,400lbs) | Certified load capacities up to 2 metric tons. |
| Safety Factor Rating | 5:1 (Single-Trip) or 6:1 (Multi-Trip / Heavy-Duty) | Guarantees compliance with international maritime and transport standards. |
| Lifting Loop Types | Cross-Corner Loops, Side-Seam Loops, or Stevedore Straps | Compatible with standard forklifts, overhead cranes, and single-point hoists. |
| Liners & Coating | Coated PP, Form-Fit PE Liners, or Aluminum Foil Barrier Liners | Protects hygroscopic powders against moisture ingress and oxygen exposure. |
| Discharge Options | Flat Closed Bottom or Integrated Spout Bottom | Allows for either single-use disposal or controlled discharge flow at destination. |
Sizing Tip for Engineers: Always measure your filling chute’s outer diameter before selecting a spout size. The bulk bag spout diameter should be 1 to 2 inches larger than the fill nozzle to allow fast slide-on attachment and prevent neck binding.
2. Key Advantages of Using an FIBC Bag with Fill Spout
Compared to other top designs, using a bulk bag with filling spout delivers superior operational performance during high-speed packaging and automated chute loading:
-
Complete Dust Suppression: When tied or clamped tightly around an automated filling pipe, a filling spout big bag creates a completely closed-loop containment system. This prevents fine particulate clouds from airborne release, improving indoor air quality in processing facilities and significantly reducing health risks and combustible dust hazards.
-
Zero Spillage & Product Loss: The flat top deck panel directs 100% of the incoming material directly into the main bag chamber. This eliminates edge spillage, prevents costly product waste, and ensures precise inventory target weights during high-speed batching operations.
-
Contamination & Weather Protection: Unlike other tonne bags, the fully covered top panel shields sensitive raw materials (such as food-grade starches, milk powders, or high-purity chemicals) from airborne debris, industrial dust, ambient humidity, and rain during transit and open storage.
-
Optimized Stacking & Warehousing: Because material is funneled evenly underneath a structured deck panel, spout top bulk bags maintain a square, uniform shape without excessive side bulging. This provides a flatter top surface, making it safer and more stable to stack filled bags 2-high or 3-high in warehouse racks and shipping containers, maximizing cubic storage capacity.
-
Accelerated Cycle Times: Automated pneumatic clamps instantly lock onto the cylindrical neck, eliminating manual bag-holding setup and shortening per-unit cycle filling times.
3. Popular Top Combinations with Spout Top Bulk Bags
While a standard spout top bulk bag features a cylindrical inlet tube sewn onto a flat top panel, manufacturers frequently customize the upper closure assembly to accommodate specific filling speeds, dust suppression systems, and material flow characteristics.
Selecting the right top entry design ensures seamless integration with automated loading chutes, prevents material bridging, and maintains a clean facility environment.
| Top Configuration | Design Feature | How It Works | Best Used For |

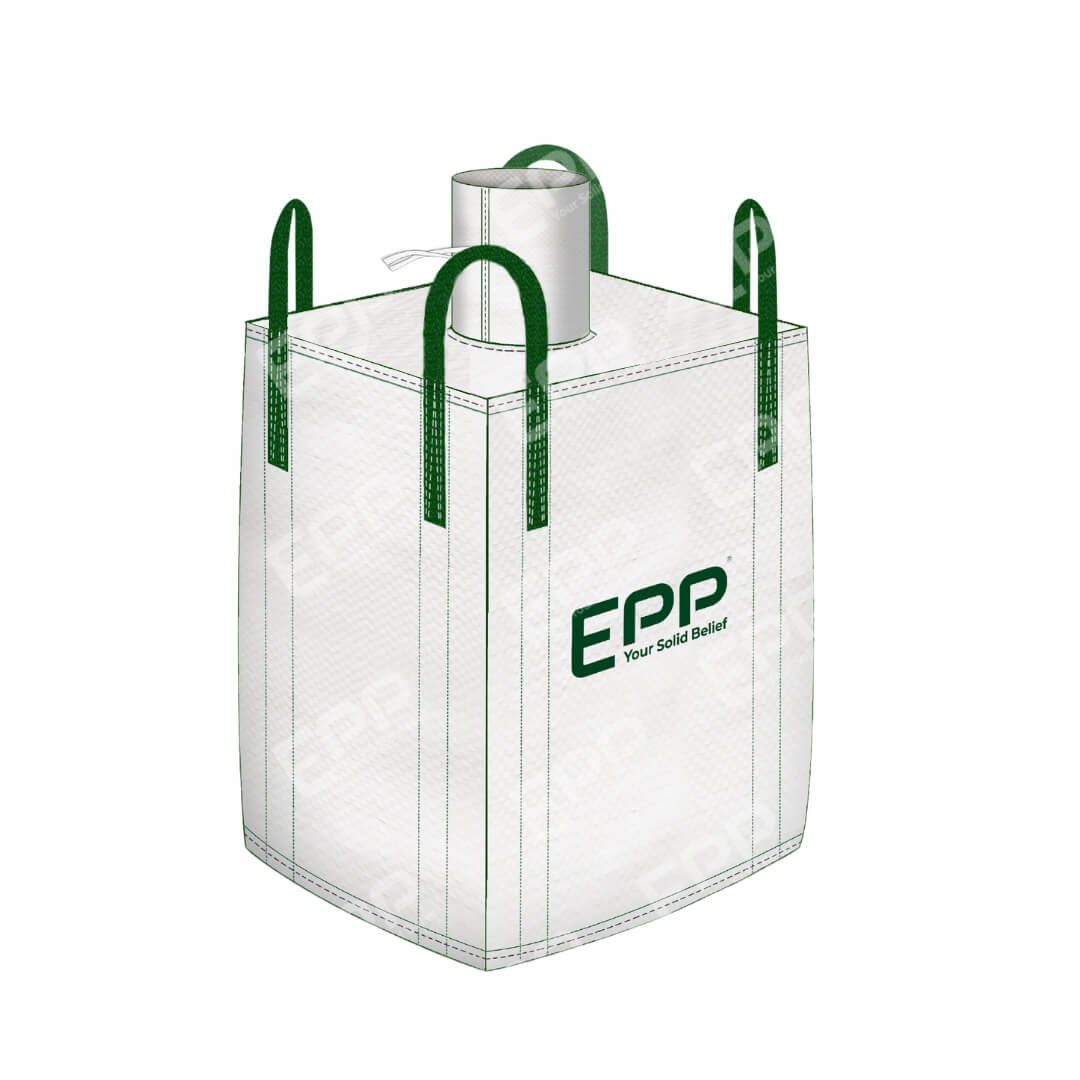

| 1. Standard Flat Top with Fill Spout | Flat woven polypropylene deck sewn to side walls with a centered cylindrical spout. | Directs 100% of material into the main chamber. The spout neck connects tightly around automated fill pipes using tie cords or pneumatic clamps. | Standard free-flowing bulk solids like plastic pellets, granulated sugar, fertilizers, and coarse chemical grains. |
| 2. Conical Top with Fill Spout | Top panel tapers upward into a pyramid/cone shape before ending at the fill spout inlet. | Eliminates flat horizontal shoulders. The sloped ceiling prevents fine powders from bridging or piling near top corners, maximizing volume. | Low-density powders, carbon black, starch, fine pigments, and materials prone to static buildup or poor flowability. |
| 3. Spout Top with Protective Flap | Standard fill spout paired with an extra rectangular fabric flap sewn along one edge of the top deck. | After filling and tying off the spout, the flap folds over and secures (ties/velcro) to shield the tie-cord from rain, dirt, and UV exposure. | Food-grade ingredients, pharmaceutical compounds, and export goods stored in open yards or shipped via flatbed trucks. |
4. Primary Commercial Applications of Spout Top Bulk Bags
Because spout top big bags deliver controlled material flow, structural reliability, and clean operations, they are widely specified across global processing industries:
-
Chemicals & Petrochemicals: Raw polymer resins, plastic pellets, carbon black, volatile pigment powders, fine synthetic catalysts, and agricultural fertilizers requiring dust-free handling.
-
Food Processing & Agriculture: Fine wheat flour, granulated sugar, animal feeds, milk powders, cocoa powder, and spices (supplied with ISO/HACCP certified food-grade cleanroom liners to guarantee hygiene).
-
Mining & Minerals: Hydrated lime, pulverized limestone, silica sand, bentonite clay, fly ash, and cementitious additives that generate heavy dust clouds during filling.
-
Pharmaceuticals & Fine Synthetics: Active pharmaceutical ingredients , excipients, and bulk chemical compounds requiring sanitary conditions, zero static discharge, and absolute containment.
5. Frequently Asked Questions about spout top bulk bags
What is the standard spout size on EPP Vietnam bulk bags?
The standard bulk bag spout size is 40-50cm. However, because EPP Vietnam is a direct manufacturer, we produce custom spout diameters to match your equipment.
What is the difference between a spout top and a spout bottom bag?
A spout top is used for filling the bag from the top. A spout bottom (discharge spout) is located on the base of the bag and is used to empty the bag in a controlled manner. Bags featuring both are referred to as spout top spout bottom bulk bags.
Do spout top FIBCs require anti-static properties?
If you are loading combustible fine powders (such as sugar, starch, or chemical resins), static buildup during high-speed filling can pose an ignition hazard. EPP Vietnam offers Type B, Type C (Groundable), and Type D Spout top bulk Bags to prevent static discharges during filling.
How do operators seal the fill spout after loading?
Each fibc with fill spout includes a pre-attached tie tape, web cord, or velcro closure strip. Once the bag reaches target weight, the operator cinches the spout neck tight and ties it off to create a dust-tight seal.
Can EPP Vietnam customize spout top bulk bags with company branding?
Yes. We offer high-definition flexographic printing up to 4 colors on all sides of the bag, allowing you to include safety instructions, UN certificates, handling marks, and custom brand logos.
Partner with EPP Vietnam
As one of Vietnam’s leading industrial packaging exporters, EPP Vietnam delivers certified fibc with filling spout wholesale solutions designed to meet strict international standards (ISO 21898, EFIBCA, and UN Packaging standards for hazardous goods).
Contact our technical sales team today to request a factory-direct quote, review custom technical drawings, or request free samples of spout top bulk bags for facility testing!
