In hazardous industrial environments handling flammable solvents or combustible powders, static electrical sparks during bulk filling or discharging can ignite ambient dust explosions. A Static Protective FIBC (Type B, Type C, or Type D) is engineered to dissipate or ground these charges, but its safety depends entirely on clear operational execution.
A safety label on an anti-static jumbo bag provides essential grounding protocols, electrical limits, and environmental guidelines that operators must follow. Without clear, durable labeling conforming to IEC 61340-4-4 standards, even the most advanced conductive FIBC risks misuse on the factory floor. EPP Vietnam integrates strict safety labeling compliance across all static protective big bag lines to guarantee zero-ignition operations for global supply chains.
Understanding Static Protective FIBC
Hazards of Electrostatic Discharges in Bulk Material Handling
During high-velocity filling or discharging of dry bulk materials—such as chemical powders, plastic granules, pharmaceutical ingredients, or agricultural products—friction between particles and the polypropylene fabric generates high levels of static electricity. This triboelectric charging process can build up thousands of volts within seconds.
If this charge accumulates on an ungrounded or non-dissipative FIBC, it can discharge in a high-energy brush spark or propagating brush discharge. In environments containing flammable vapors or combustible dusts (where Minimum Ignition Energies—MIE—can be as low as 0.1 mJ to 10 mJ, such a spark can instantly trigger an explosion. Understanding specialized manufacturing terminology is vital when evaluating bag construction; buyers can consult a detailed guide on FIBC terminology to navigate structural specifications.

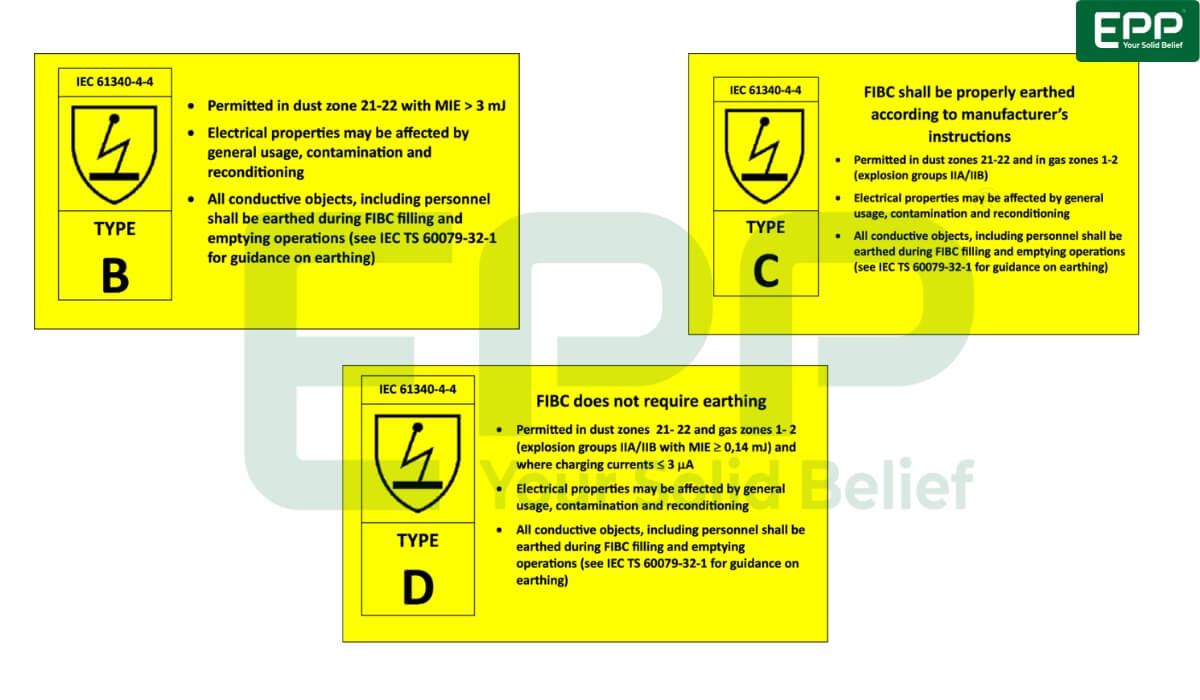

Classification matrix and safety labeling placement for Static Protective FIBCs according to IEC 61340-4-4 standards
Importance of Safety Labeling for Static Protective FIBC
Safety labels on anti-static FIBCs serve as the primary line of defense at the point of operation. While plant engineers design safety workflows, line operators rely directly on the physical label on the bag to determine whether a container requires manual grounding, whether it is safe for specific vapor zones, or if additional precautions are needed.
Failure to display accurate safety labeling on a Static Protective FIBC not only increases the risk of workplace accidents but also exposes importers and plant managers to severe legal liabilities and shipment rejections during customs or audits.
Operating in explosive industrial environments requires unwavering adherence to technical safety protocols. Plant personnel must immediately identify whether an arriving bulk bag can be safely grounded or if it functions independently without external bonding. When labels are missing, damaged, or illegible, line operators are forced to make assumptions, dramatically increasing the probability of a human-error spark discharge during routine discharge operations.
Core Safety Labeling Requirements under IEC 61340-4-4 Standards
Mandatory Technical Information on Static Warning Labels
The international standard IEC 61340-4-4 specifies the electrostatic requirements for FIBCs intended for use in hazardous areas. To maintain full compliance, the safety labeling requirements for static protective FIBC dictate that the following technical parameters must be permanently displayed on the bag:
- FIBC Type Identification: Clear designation as Type B, Type C, or Type D.
- Electrical Resistance Specifications: Resistance to ground ( Rg< 10^7 Ω for Type C) or insulation breakdown voltage (< 6 kV for Type B).
- IEC Grounding Symbol: Standardized electrical earth symbol indicating designated connection points on Type C bags.
- Hazardous Area Limits: Explicit listing of allowable explosive environments.
- Quality & Traceability Data: Manufacturer identification, unique batch/lot number, manufacturing date, and certification lab reference.
Labeling Differences Across FIBC Types (Type B vs Type C vs Type D)
| Labeling Metric | Type B FIBC | Type C FIBC (Groundable) | Type D FIBC (Dissipative) |
| Grounding Requirement | No grounding mechanism | MANDATORY grounding indicator | Self-dissipating (No grounding needed) |
| Primary Warning Text | “Do not use in flammable solvent vapor environments” | “WARNING: MUST BE EARTHED BEFORE FILLING AND EMPTYING” | “Safe for use in explosive atmospheres without earthing” |
| Grounding Label Location | N/A | Sewn directly adjacent to primary grounding tabs | Primary identification panel |
| Color Coding | Standard Yellow/Black warning panel | Standard Yellow/Black warning panel | Standard Yellow/Black warning panel |
| Electrical Limit Display | Breakdown Voltage < 6 kV | Resistance to Ground < 10^7 Ω | Surface breakdown voltage limits |
Safety labels for Type C bags must feature prominent, high-contrast warning text and clear visual markers pointing directly to the grounding tabs. For buyers seeking high-performance materials from leading suppliers of big bags vietnam, understanding component formulation is equally critical; learn about calcium carbonate additives for FIBCs fabric to see how raw material selection impacts fabric stability and electrical insulation.
High-visibility, weather-resistant Type C grounding safety label engineered by EPP Vietnam
Guidelines for FIBC Safety Labels
Label Material & Printing Durability Specifications
An anti-static FIBC bag safety label must remain fully legible throughout the bag’s entire operational lifecycle—including outdoor storage, maritime shipping, and exposure to industrial chemicals.
- Non-Accumulating Label Substrate: The label material itself must be manufactured from non-static-accumulating polypropylene or coated PE film so that the label does not become an isolated spark source.
- Solvent-Resistant Printing: Warning text and symbols are printed using UV-stabilized, solvent-resistant inks that resist fading under sunlight, washdowns, or chemical fumes.
- Reinforced Stitching: Labels are sewn into primary seam lines using high-tenacity PP thread, ensuring they cannot detach during high-speed handling or mechanical abrasion.

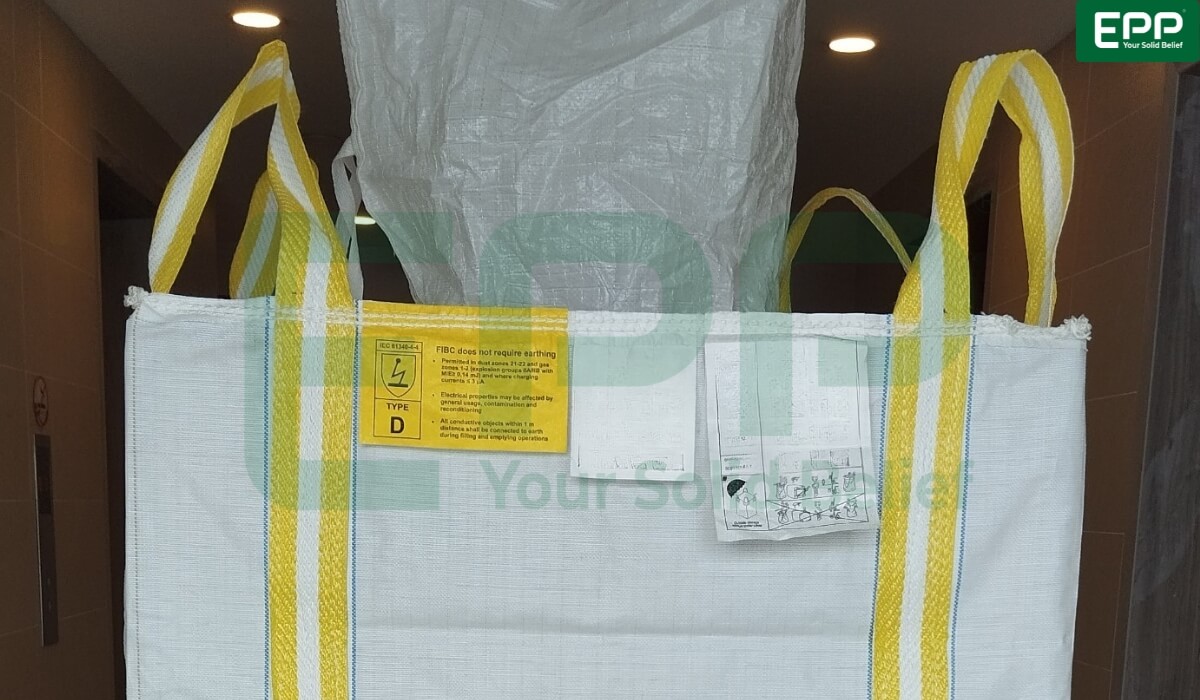

Type D fibc bags from Vietnam with safety label
Smart Labeling with QR Code Integration
As digital compliance tracking evolves, modern safety labels incorporate dynamic QR codes printed directly on the label face. By scanning the QR code with a mobile device or industrial reader, EHS managers and operators can instantly access:
- Digital Certificate of Conformance: Verified test results for breakdown voltage and resistance to ground for that specific batch.
- Multi-Lingual Video Instructions: Step-by-step visual guides demonstrating correct earthing clamp attachment for Type C bags or operational limits for Type D bags.
- Traceability Records: Complete raw material, extrusion, and weaving batch logs from the factory floor.
Evaluating label durability under extreme weather conditions is an essential part of quality assurance. Exposed to intense solar radiation during port storage, inferior labels can degrade or become brittle. To learn more about fabric preservation under sunlight, read our analysis on why we need UV stabilization on FIBC bags.
How EPP Ensures Safety Labeling Compliance for Static Protective FIBC
Strict Adherence to International Testing Standards
EPP Vietnam engineers every Static Protective FIBC to satisfy the most demanding international safety benchmarks. Our anti-static jumbo bag designs undergo independent laboratory testing and verification through recognized testing authorities such as Labordata (Germany).
Every production batch is tested for electrical resistance, charge decay times, and breakdown voltage. The verified test parameters are printed directly onto the product’s safety label, giving buyers complete confidence in technical compliance.
Customized Label Design Supporting Multi-Language Workplaces
Because our industrial packaging is exported worldwide, EPP Vietnam offers customized label design tailored to your destination market’s specific language and regulatory requirements.
- Multi-Language Safety Text: Labels can feature dual or triple languages (e.g., English, German, French, or Japanese) to ensure clear comprehension by factory workers worldwide.
- Integrated Certification Matrix: Safety warning labels can be combined with other mandatory markings, such as UN Dangerous Goods codes, ISO 9001 quality marks, and BRCGS food-grade cleanroom symbols.
During cleanroom assembly, dedicated quality control inspectors examine 100% of finished bags to confirm that earthing tabs are correctly positioned, conductive grid continuity is verified, and safety labels are securely attached without stitch defects.

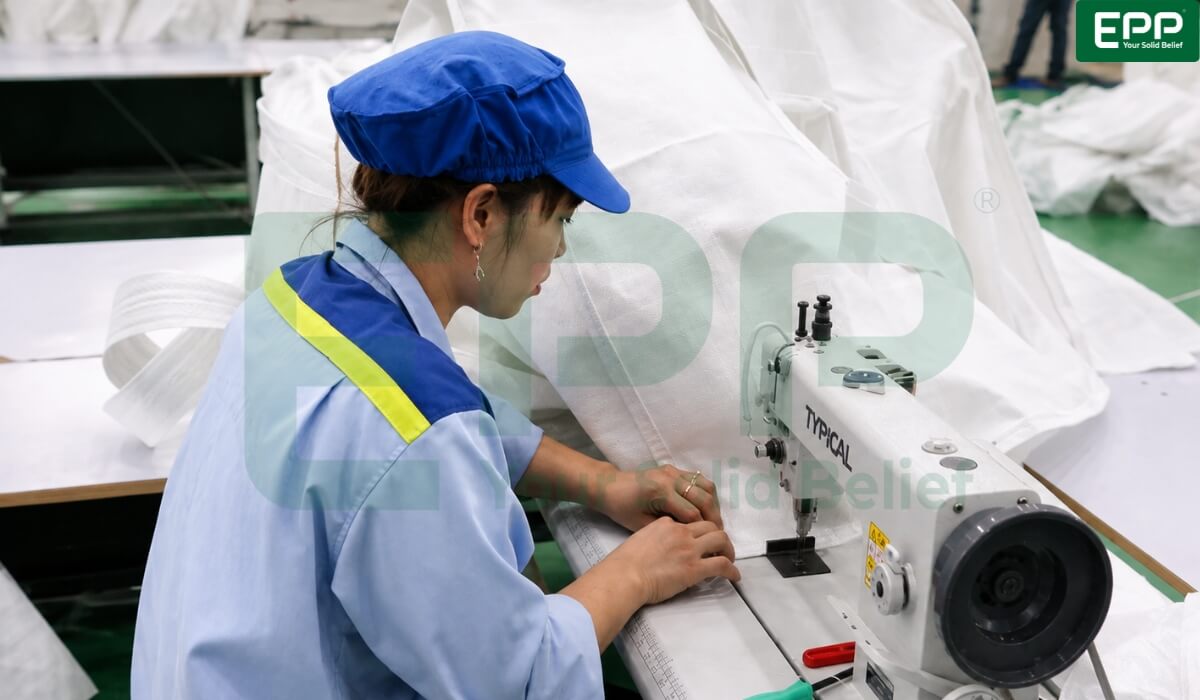

Rigorous quality control guarantees every Static Protective FIBC features fully compliant, durable safety tags before shipment
Partner with EPP Vietnam for Fully Compliant Static Protective FIBC Solutions
Navigating complex safety regulations requires an experienced bulk packaging partner who understands both mechanical strength and electrostatic safety. EPP Vietnam delivers factory-direct, lab-certified anti-static jumbo bags engineered for volatile industrial environments across the globe.
To explore static protective options customized for your operational requirements, contact our engineering team to review technical specifications, request sample safety label layouts, and receive a competitive wholesale quote today!
