HDPE resin is a versatile thermoplastic polymer produced from ethylene through low-pressure polymerization. Recognized for its high strength-to-density ratio, superior chemical resistance, and linear molecular structure, HDPE serves as a foundational material across modern industrial packaging, rigid containers, agricultural films, and pipe infrastructure.
For international B2B buyers and converters, selecting the correct HDPE resin is not a one-size-fits-all purchasing decision. Successful product performance depends on matching the material’s specific grade, density, and melt flow behavior to your precise manufacturing process and regulatory environment.
High-purity HDPE resin pellets serve as the core raw material for technical films, containers, and industrial packaging.
What Is HDPE Resin and How Is It Polymerized?
HDPE stands for High-Density Polyethylene. It belongs to the polyolefin family of polymers and is classified under Resin Identification Code (RIC) #2.
The Polymerization Process of Ethylene
HDPE resin is manufactured through the low-pressure polymerization of ethylene gas. Using specialized catalyst systems—such as Ziegler-Natta or chromium-based (Phillips) catalysts—reactors process ethylene under moderate temperatures (70°C to 110°C) and pressures (10 to 50 bar) across gas-phase, slurry, or solution reactor systems.
Why Linear Molecular Structure Matters?
Unlike Low-Density Polyethylene (LDPE), which contains extensive long-chain branching, HDPE resin features a highly linear molecular structure with minimal short-chain branching. This linear arrangement allows polymer chains to pack tightly together during crystallization, resulting in a higher degree of crystallinity (60% to 80%). This molecular density directly delivers HDPE’s characteristic rigidity, higher tensile strength, and superior barrier properties.

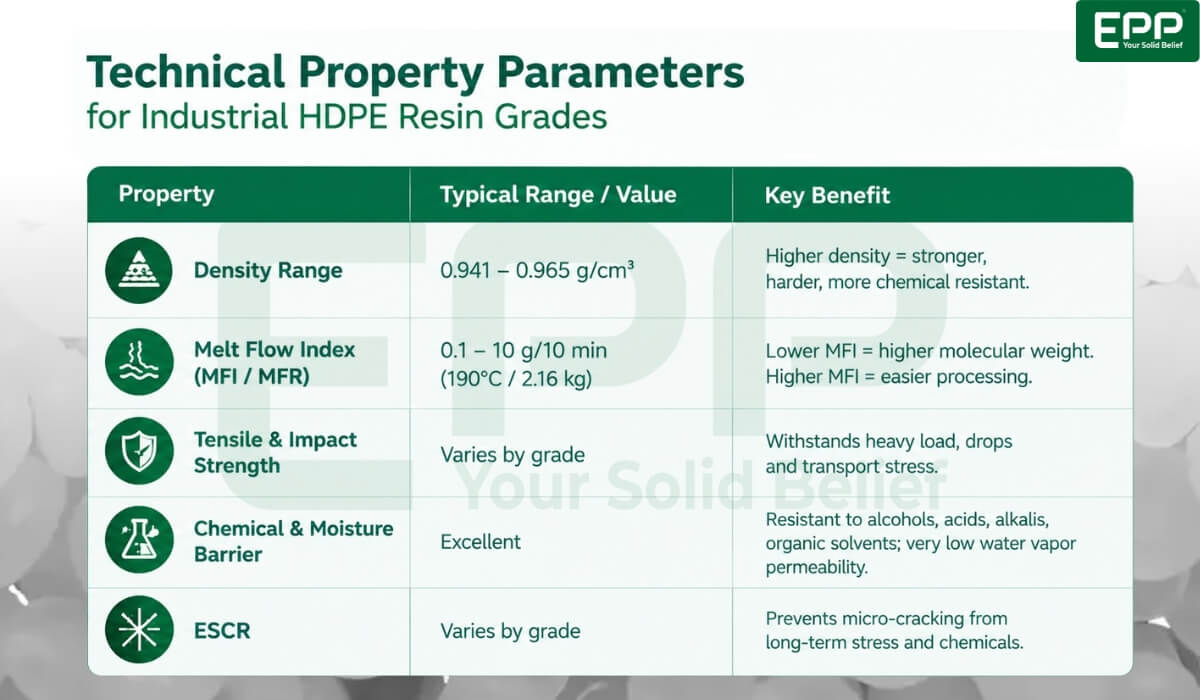

Key Physical and Mechanical Properties of HDPE Resin
Selecting the appropriate material requires evaluating several key technical parameters:
- Density Range: Commercial HDPE resins typically feature a density ranging from 0.941 g/cm³ to 0.965 g/cm³. Higher density increases tensile strength, surface hardness, and chemical resistance, though it slightly reduces impact toughness at extreme low temperatures.
- Melt Flow Index (MFI / MFR): MFI measures the rate at which the molten polymer flows under standardized temperature and load conditions (e.g., 190°C / 2.16 kg). Lower MFI values indicate higher molecular weight and melt strength, whereas higher MFI values allow easier mold filling during high-speed processing.
- Tensile & Impact Strength: High structural integrity protects finished products against heavy mechanical loading, drops, and dynamic transport stress.
- Chemical & Moisture Barrier: Excellent resistance to alcohols, dilute acids, alkalis, and organic solvents, combined with very low water vapor permeability.
- Environmental Stress Crack Resistance (ESCR): Critical for containers holding active chemicals or detergents, high-ESCR grades prevent micro-cracking caused by long-term internal stress and chemical exposure.
To understand how polyolefin properties compare across industrial applications, explore our analysis of PP properties and industrial applications.
Evaluating key properties ensures optimal material performance for demanding industrial environments.
HDPE Resin Grades and Industrial Applications
Because molecular weight distribution and flow properties vary significantly, HDPE resin is compounded into distinct commercial grades tailored to specific processing methods and product end-uses:
| Commercial HDPE Grade | Typical MFI (g/10 min) | Typical Density (g/cm³) | Key Technical Characteristics | Primary End-Use Applications |
| Blow Molding Grade | < 0.1 to 1.0 (Low MFI) | 0.950 – 0.960 | High melt strength, excellent parison stability, high ESCR | Small bottles, 200L chemical drums, jerry cans, fuel tanks |
| Injection Molding Grade | 2.0 to 30+ (High MFI) | 0.950 – 0.965 | Fast mold filling, high rigidity, dimensional stability, warp resistance | Caps, closures, heavy-duty crates, pallets, thin-wall food containers |
| Film Extrusion Grade | 0.05 to 0.20 (Very Low MFI) | 0.945 – 0.958 | Broad molecular weight distribution, high melt tension, puncture/tear resistance | T-shirt shopping bags, heavy-duty sacks, industrial liners, agricultural films |
| Pipe Extrusion Grade | < 0.01 to 0.50 (Bimodal MFR) | 0.948 – 0.962 | Exceptional hydrostatic pressure strength, long-term creep resistance, superior ESCR | Potable water pipes, gas main distribution, corrugated drainage, industrial conduit |
| Rotational Molding Grade | 3.0 to 7.0 (Medium MFI) | 0.935 – 0.942 | Uniform powder flowability, stress-crack resistance, outdoor weatherability | Water tanks, septic tanks, large agricultural hoppers, outdoor play structures |
| Monofilament / Yarn Grade | 0.40 to 1.0 (Medium-Low MFI) | 0.950 – 0.958 | High tensile orientation, low elongation under tension, wear resistance | Agricultural shade nets, ropes, woven sacks, geotextiles |
For guidance on raw material budgeting and global supply dynamics across these grades, review our report on resin price trends and supply chain drivers.
From blow-molded drums to extruded films, selecting the right process grade is vital for product reliability.
Virgin HDPE Resin vs. Recycled HDPE (rHDPE)
| Parameter | Virgin HDPE Resin | Recycled HDPE (rHDPE) |
| Material Origin | Direct petrochemical synthesis from ethylene | Post-consumer or post-industrial waste streams |
| Purity & Consistency | 100% consistent MFI, density, and color | May exhibit slight batch-to-batch property variations |
| Food-Contact Approval | Fully certified (FDA / EU compliant grades) | Restricted to specialized super-cleaning recycling processes |
| Environmental Footprint | Higher initial carbon footprint | Significantly lowers carbon emissions & landfill waste |
| Primary Uses | Food containers, medical packaging, high-stress pipes | Non-food bottles, drainage pipes, pallets, outdoor timber |
Combining high-purity virgin resin with verified Post-Consumer Recycled (PCR) content allows enterprise buyers to meet sustainability targets while maintaining target structural performance.
Frequently Asked Questions about HDPE resin
How do I choose the correct HDPE resin grade?
Start by identifying your manufacturing process (e.g., blow molding, injection molding, or film extrusion). Next, define your required end-product performance specifications—such as target density, Melt Flow Index (MFI), impact resistance, and Environmental Stress Crack Resistance (ESCR)—and match them against the supplier’s Technical Data Sheet (TDS).
Is HDPE resin recyclable?
Yes. HDPE resin is 100% recyclable under Resin Identification Code (RIC) #2. It can be collected, washed, re-pelletized, and remanufactured into recycled HDPE (rHDPE) pellets for non-food industrial products, pipes, and outdoor equipment.
Is all HDPE resin food-grade?
No. While virgin HDPE polymer is non-toxic, a specific resin batch is only certified food-grade if it utilizes FDA or EU-approved additive packages, passes migration testing, and is processed under strict hygienic conditions. For a detailed technical breakdown of food-contact safety standards and regulations, explore our guide on food grade plastics material.
What is the difference between HDPE MFI and density?
Density measures material mass per unit volume (930 to 970 kg/m³) and determines structural stiffness, barrier strength, and tensile property. Melt Flow Index (MFI) measures the molten resin’s flow speed under specific heat and pressure conditions, determining how the material behaves during processing.
Selecting the ideal HDPE resin grade requires a balanced approach that aligns physical properties—such as density, MFI, and tensile strength—with your precise processing methods and regulatory demands. Whether you require prime virgin resin for food-grade packaging or sustainable rHDPE options for industrial applications, understanding material behavior ensures high product quality, manufacturing efficiency, and cost transparency across your supply chain.
