4-Panel FIBC Bag

A 4-panel FIBC bag (Flexible Intermediate Bulk Container) is one of the most widely used industrial packaging designs for storing and transporting dry bulk materials. Constructed by sewing four separate fabric panels together to form a sturdy, box-like body, a four-panel FIBC offers superior structural stability and shape retention compared to standard circular or U-panel bags.

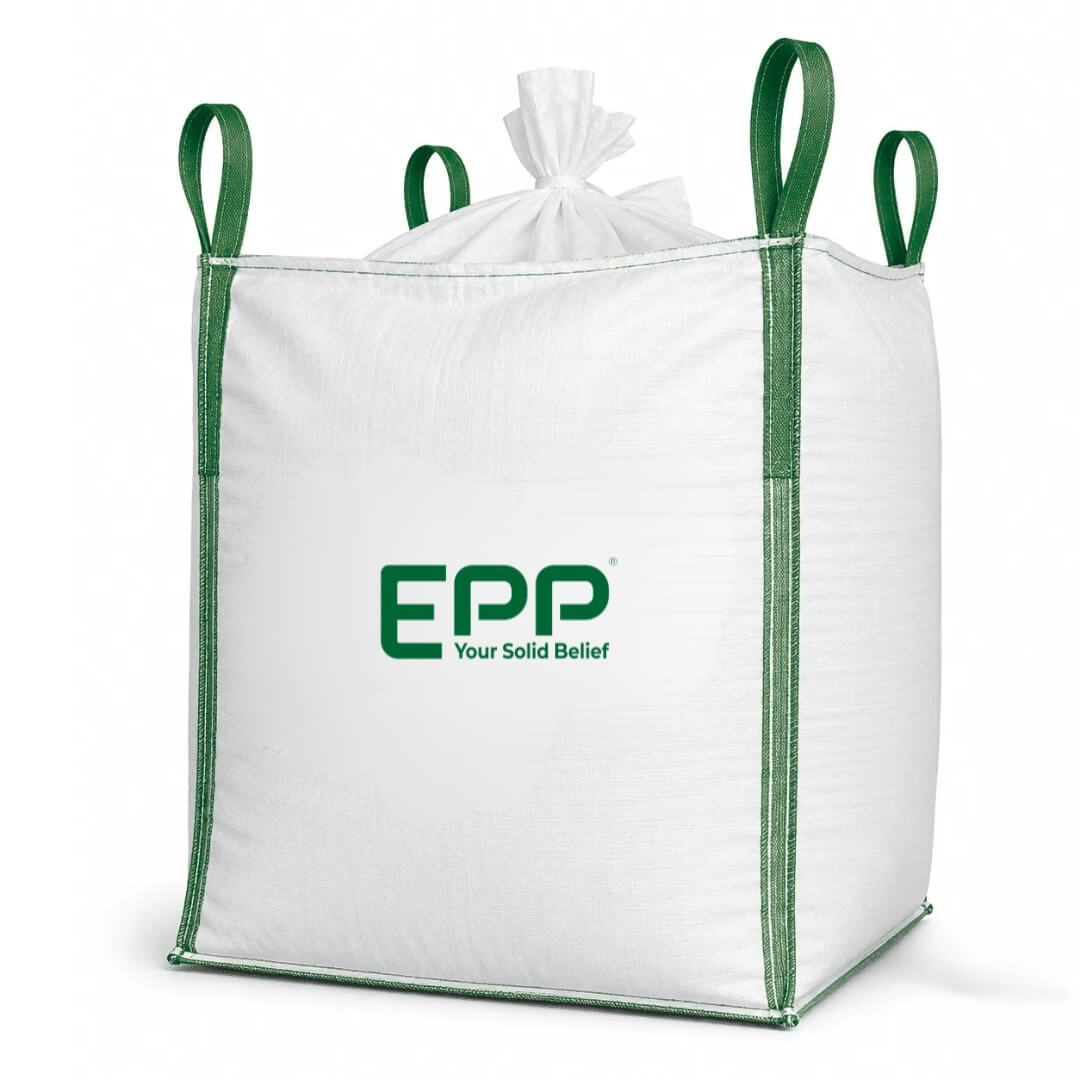

Whether you require a heavy-duty 4-panel super sack for high-density aggregates or a specialized 4 Panel Baffle Bag to maximize container loading space, this versatile design is a cornerstone of commercial logistics.

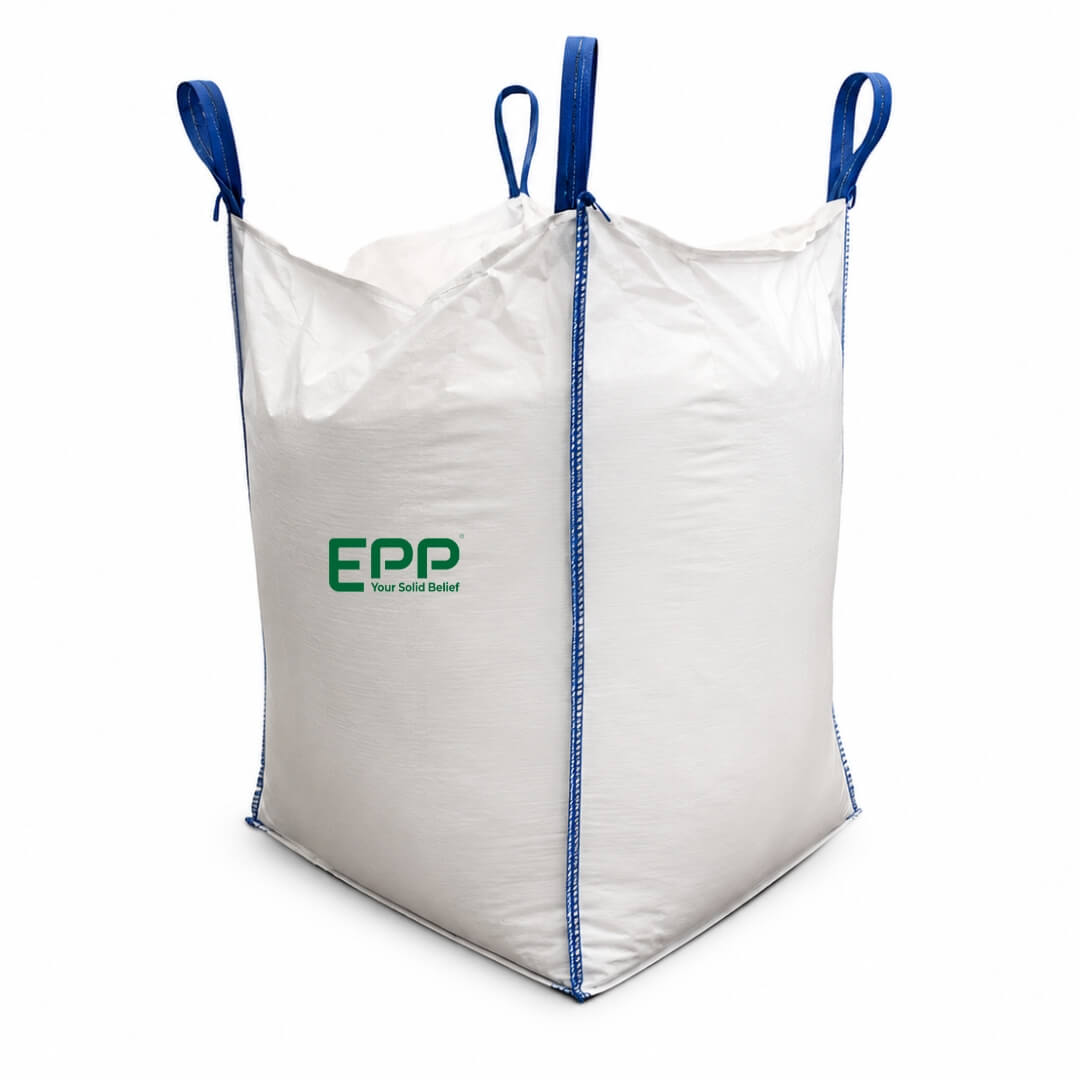

Specifications of 4-Panel Jumbo Bags

Selecting the optimal 4-panel FIBC bulk bags requires evaluating material density, fill and discharge automation systems, electrostatic safety requirements, and shipping environments.

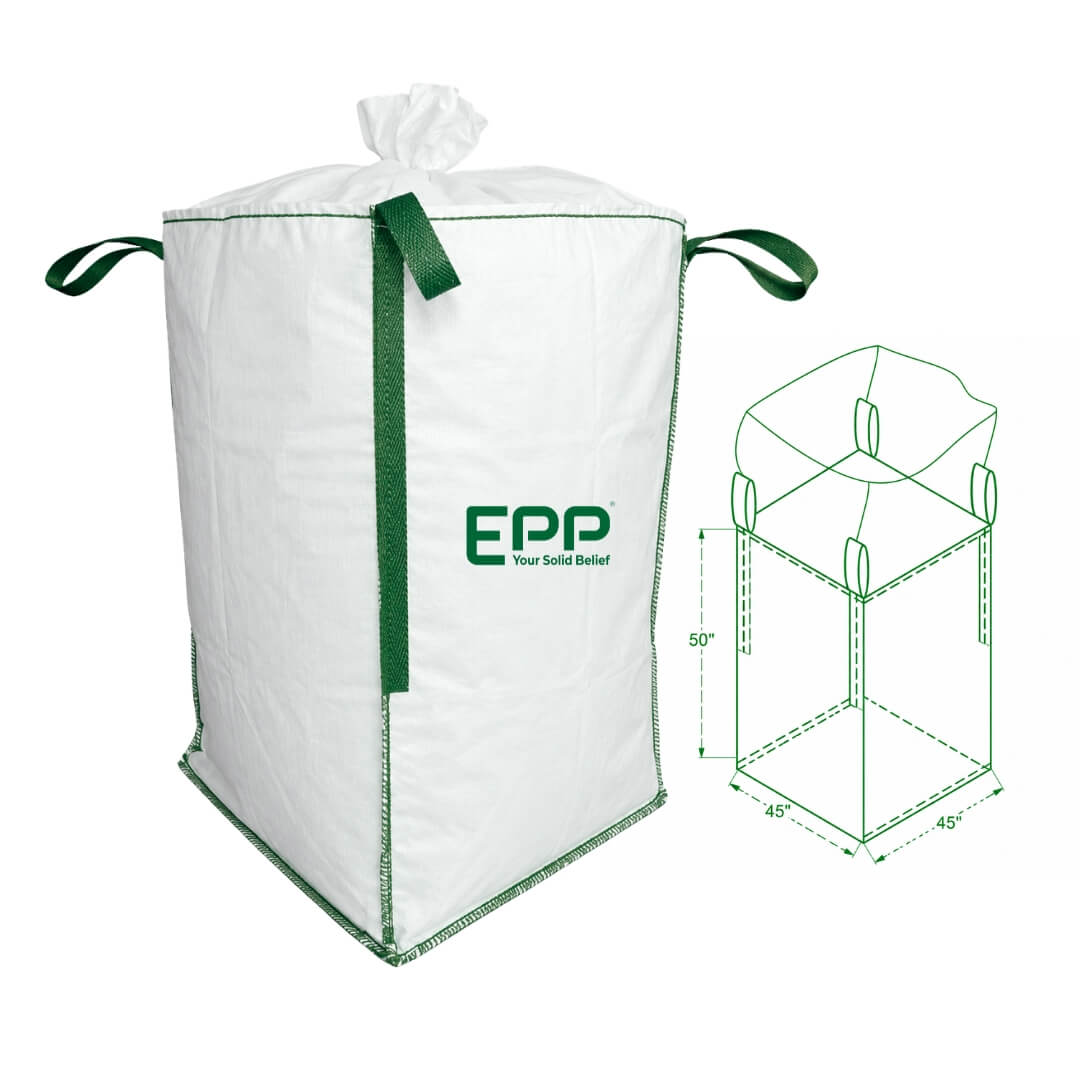

Structure of a 4-Panel FIBC Bag

The primary advantage of a 4-panel bag lies in its multi-piece construction. Rather than forcing a single fabric sheet to wrap around and bear multidirectional stress, the weight is distributed across five separate structural panels held together by reinforced vertical and horizontal stitching.

• Four Side Panels: Four individual sheets of woven polypropylene are stitched together vertically at the four corners to form a square, upright enclosure.
• Base Fabric Sheet: A separate bottom panel is sewn to all four side walls, creating a clean 90 degree baseline for balanced stacking.
• Corner Seams: The presence of four vertical seams significantly reduces fabric stretching under side-pressure, preventing the bag from bulging outward.
• Internal Baffles (Optional): In a 4 Panel Baffle Bag, internal fabric panels (baffles) are stitched across the four corners inside the bag to help it maintain a strict square footprint when fully loaded.

Why Choose 4-Panel Bulk Bags?

Selecting 4-panel bags provides several operational advantages for industrial manufacturers and bulk material distributors:

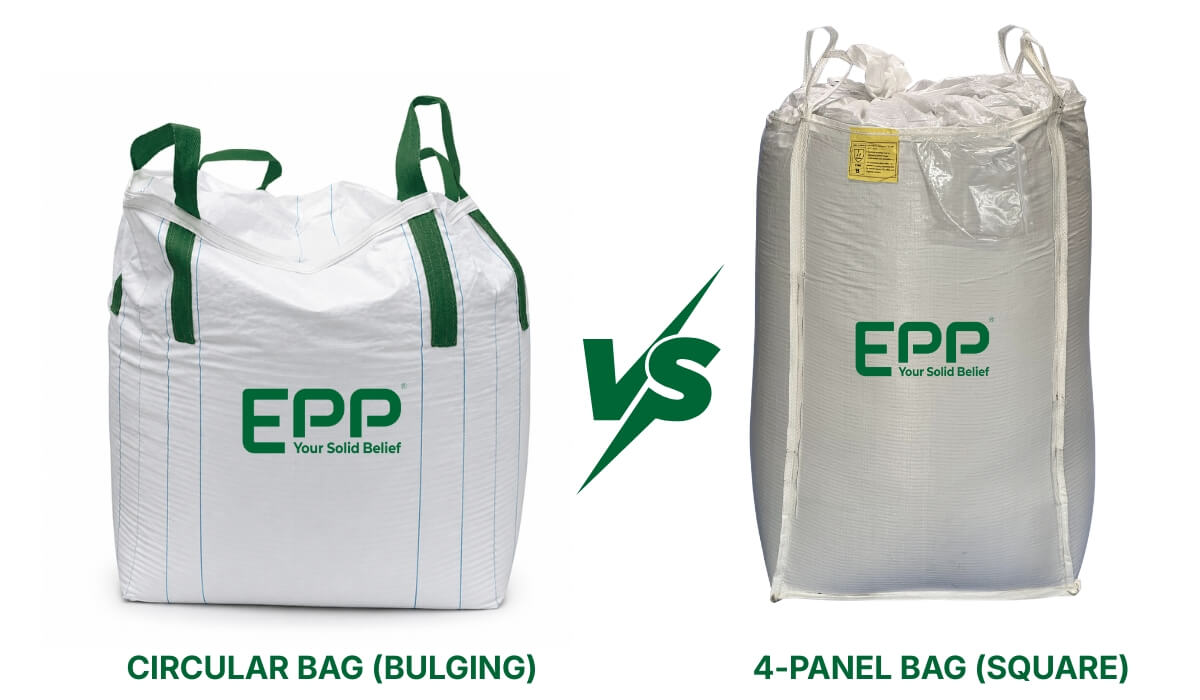

• Exceptional Shape Retention: Unlike circular bags that swell into a cylinder when filled,Four panel bulk bags keep their rectangular posture, preventing lean and tipping during transit.

• Optimal Stacking & Freight Efficiency: Because 4-panel FIBCs maintain clean vertical walls, they align neatly on pallets and fit snugly inside sea containers and dry vans, eliminating wasted volume.

• High Weight Capacity: Reinforcing four vertical corner seams allows a 4-panel FIBC bag to handle higher payload densities without risking seam tears or fabric stress points.

• Versatile Customization: Manufacturers can easily integrate PE liners, dust-proof sift-seams, anti-static (Type B, C, D) fabrics, or specialized filling spouts to meet food, pharmaceutical, or chemical standards.

Application of 4-Panel FIBC Bag

Thanks to their high structural stability, superior weight distribution, and resistance to side-wall bulging, 4-Panel Jumbo bags are utilized across a wide spectrum of demanding industries for storage and transit:

• Construction & Building Materials: Like other builders sacks, 4 panel bag can be used to transportdense, heavy aggregates such as sand, gravel, cement, dry mortars, limestone, and crushed stone without risking seam failure or tipping.

• Chemicals & Petrochemicals: Storing raw chemical powders, resins, plastic pellets, fertilizers, and granular compounds safely, especially when paired with dust-proof seams or Type B/C/D anti-static fabrics.

• Agriculture & Farming: Bulk handling of grains, animal feed, seeds, coffee beans, nuts, and raw crops where high payload capacity and balanced pallet stacking are essential.

• Food & Pharmaceuticals: Transporting fine powders such as flour, sugar, starch, food additives, and active pharmaceutical ingredients (APIs) when constructed with food-grade virgin polypropylene and hygienic liners.

• Mining & Minerals: Storing heavy minerals, ores, refractory materials, and industrial salts requiring maximum tensile strength and heavy-duty corner stitching.

• Recycling & Waste Management: Collecting and shipping scrap plastic, rubber regrind, biomass, and industrial waste materials for processing facilities.

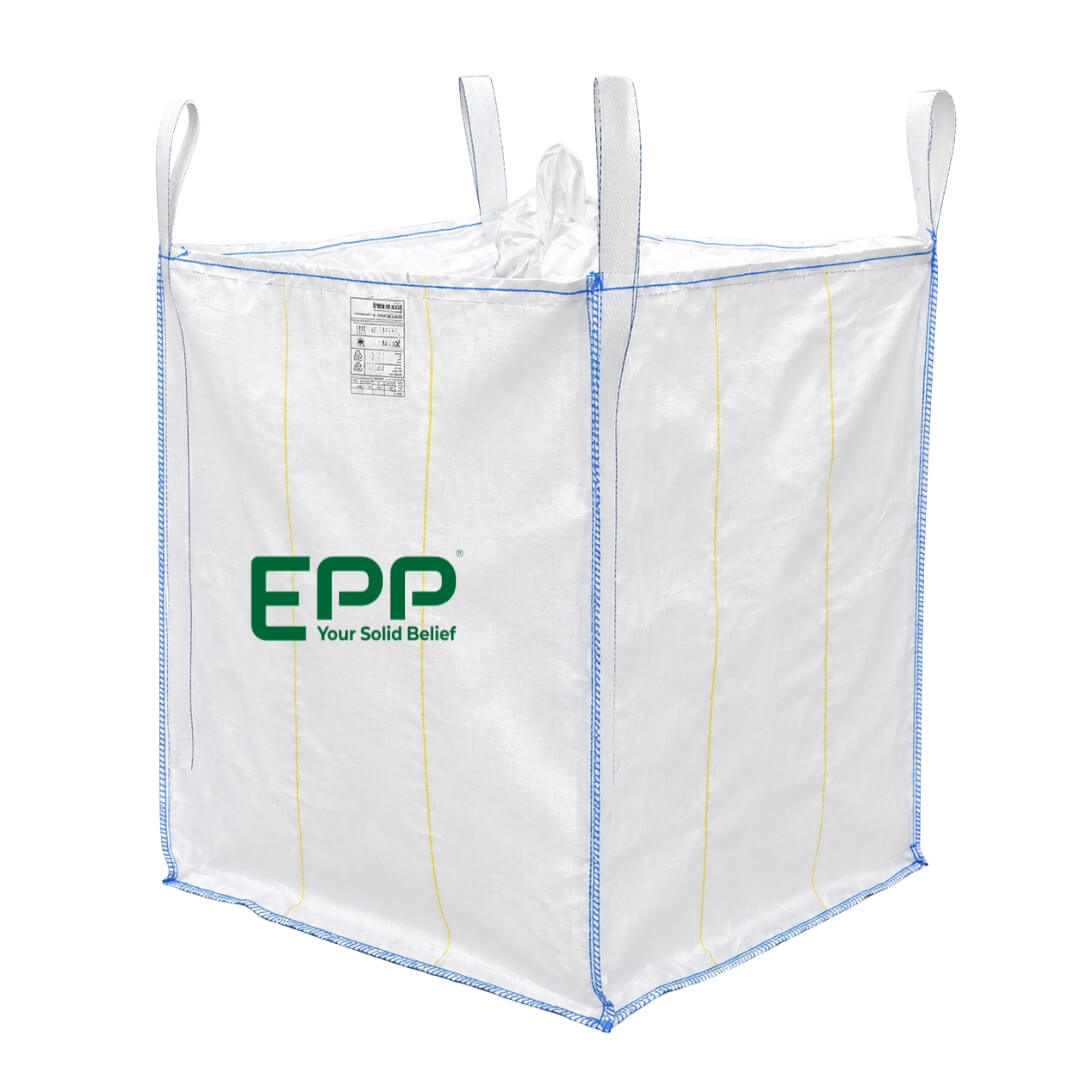

FAQ for 4-Panel Big Bags

What is the difference between a U-panel bag and a 4-panel bag?

A U-panel bag uses one continuous sheet of fabric for the bottom and two opposite sides, with two separate side panels sewn in. A four-panel FIBC uses four distinct side panels plus a separate base panel, offering greater structural rigidity and resistance to bulging.

Can 4-panel FIBC bag be customized with internal liners?

Yes. Depending on your product’s sensitivity to moisture, oxygen, or contamination, 4-panel bags can be fitted with various inner polyethylene (PE) liners.

How can I ensure my fine powders do not leak through the needle holes?

Woven PP fabric is stitched using industrial needles that create microscopic perforations along the corner seams. For fine powders ( below 100Mic) like flour, pigments, or chemical additives, you should order your 4-panel FIBC bag with sift-proof (dust-proof) seam protection. This uses soft polypropylene yarn or felt cords sewn directly along the seam to plug needle holes and prevent sifting during transit.

Are 4-panel bulk bags food-grade and certified for food contact?

Standard 4-panel bags are not automatically food-grade. For food or pharmaceutical applications (e.g., sugar, milk powder, starch), the bags must be manufactured in an ISO 22000, BRCGS, or FDA-certified cleanroom facility using 100% virgin polypropylene resin, ultrasonic cutting (to eliminate loose threads), and food-safe thread/liners.

Partner with EPP Vietnam for Premium 4-Panel FIBC Bag

When it comes to securing high-performance bulk packaging for your global supply chain, working directly with a trusted manufacturer makes all the difference. As a leading manufacturer and exporter of packaging solutions in Vietnam, EPP Vietnam provides high-quality, fully customizable 4-panel FIBC bag designed to meet strict international standards (ISO, BRCGS, UN certified).

Whether you need heavy-duty 4-panel jumbo bags, dust-proof options for fine powders, or food-grade certified containers, EPP Vietnam delivers tailor-made solutions at competitive factory-direct wholesale rates.
