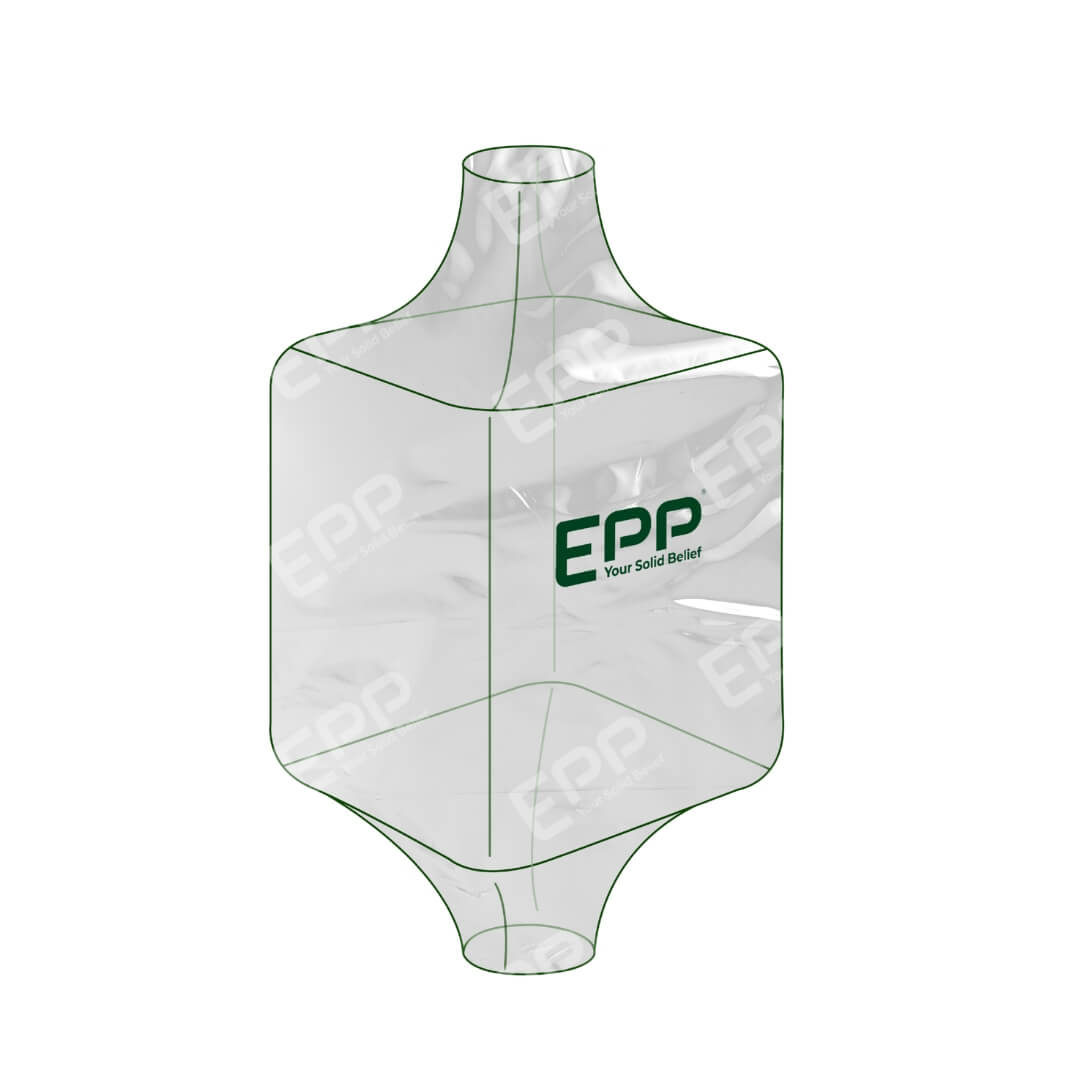

PE Liner for FIBC bags

Transporting fine powders, agricultural grains, or sensitive chemicals in super sacks presents serious risks: atmospheric moisture ingress, product caking, and fine particle leakage through sewing needle holes. Using a PE liner for FIBC bags—also known as a bulk bag liner or FIBC liner—provides a continuous, liquid-tight, and dust-proof protective barrier.

As a strategic international packaging partner, EPP Vietnam coordinates with top BRCGS, ISO, and FDA-certified manufacturing facilities across Vietnam to supply specialized PE FIBC liner

What Is a PE Liner for FIBC Bags?

A PE liner for bulk bags is a protective inner container manufactured from Polyethylene (LDPE, LLDPE, or HDPE) inserted into a Flexible Intermediate Bulk Container (FIBC).

While the heavy-duty woven polypropylene outer bag provides structural load capacity, the internal PE liner for FIBC bags creates an airtight barrier that seals out atmospheric humidity, stops fine powders from sifting through stitching seams, and prevents cross-contamination. Beyond FIBC industrial applications, specialized polyethylene protective films are also widely utilized in farming and greenhouse insulation; explore our agricultural films for specialized outdoor barrier applications.

Technical Specification of Bulk Bag Liner

Selecting the right PE liner for FIBC bags requires balancing resin density, film thickness, and certified safety standards:

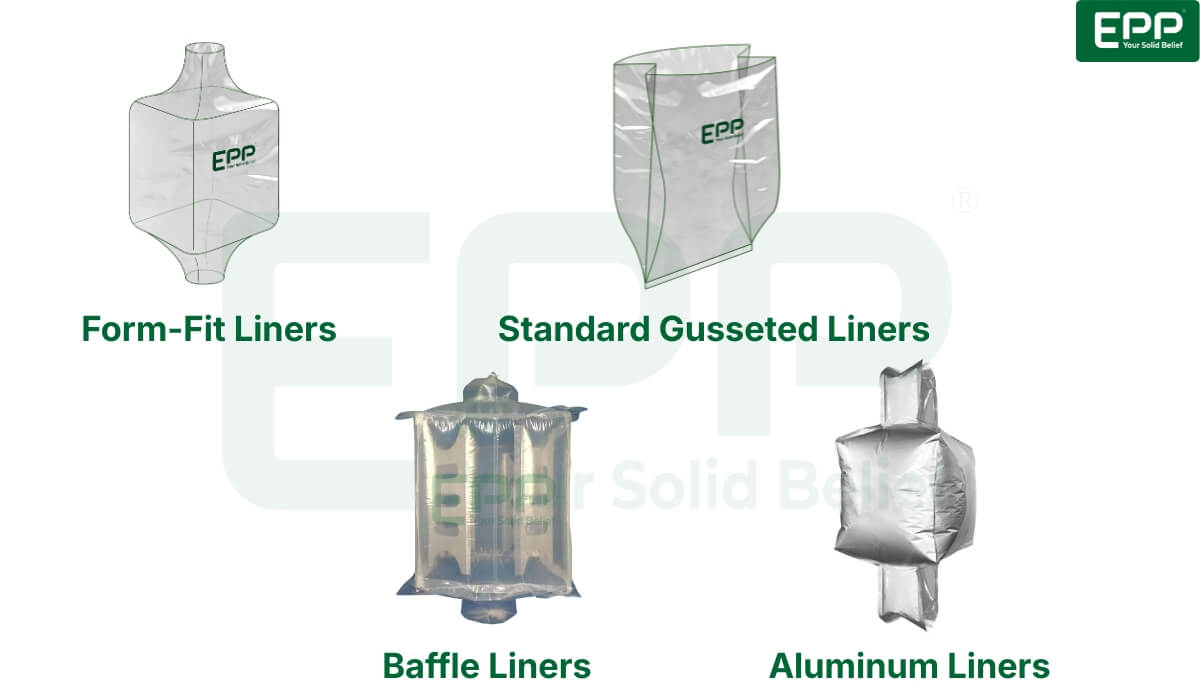

Common Types of PE Liner for FIBC Bags

Different bulk cargo behaviors demand specific liner geometries:

• Form-Fit Liners (3D Shaped): Molded to match the exact dimensions of the bulk bag, including top inlet and bottom discharge spouts. They eliminate folds and creases, ensuring complete product discharge.

• Standard Gusseted Liners (Tube/Pillow): A lay-flat tubular film with side gussets. It provides an economical moisture barrier for basic agricultural or mineral bulk cargo.

• Baffle Liners (Cubicon Liners): Feature internal film baffles that prevent the bag from bulging, keeping the container square and optimizing ocean container volume by up to 20%.

• Aluminum Foil & High-Barrier Liners: Multi-layer composite films (PET/AL/PE) designed for zero oxygen and moisture transmission, critical for infant formula and APIs.

Buyer Tips: Electrostatic Requirements for Type C & Type D Bags: If your operation requires Type C (groundable) or Type D (dissipative) electrostatic bulk bags, your PE liner for FIBC bags must be specified as a Type L2 Liner (Antistatic PE Liner) or a conductive hdpe liner compliant with IEC 61340-4-4. Standard insulating PE liners will block charge dissipation, creating a severe static spark hazard in explosive dust environments.

PE Liner Attachment Methods for Jumbo bags

Properly securing a PE liner for FIBC bags inside the outer container prevents operational failures during filling and emptying:

• Loose-Inserted: The liner is placed loosely inside the bag and folded over the top inlet. Best suited for manual filling and free-flowing dry goods.

• Tabbed / Tied Attachment: D-rings or plastic tabs are welded to the liner corners and tied into the outer bag seams, keeping the liner anchored during discharge.

• Glued / Bonded Attachment: Hot-melt adhesive spots fix the liner flat against the inner polypropylene fabric, eliminating air pockets, folds, and material entrapment.

• Sewn / Stitched Attachment: The liner top or bottom spout is sewn directly into the bag hem, maintaining perfect alignment with industrial filling heads and discharge chutes.

• Suspended Liner Systems: Anchor tabs hold a form-fit liner taut against the bag walls, preventing film collapse and ensuring 100% discharge efficiency for cohesive powders.

Common Mistakes When Buying FIBC Liners & How to Avoid Them

• Selecting Loose-Inserted Liners for Sticky Powders: Loose liners often slide down during discharge, blocking downstream valves. Switch to glued, tabbed, or suspended liners.

• Using Uncertified Recycled Resin for Food Cargo: Recycled PE can leach contaminants into food or pharmaceutical ingredients. Always demand 100% virgin resin certified to BRCGS and FDA standards.

• Ignoring Thickness vs. Puncture Resistance Requirements: Heavy or sharp granules easily puncture thin gauge liners. Use high-density polyethylene (HDPE) for superior puncture resistance at lower thickness gauges.

Frequently Asked Questions (FAQ) About PE Liner for Bulk Bags

How thick is a PE liner?

The thickness of a PE liner can vary widely, typically ranging from 6 mils (0.15 mm) to 30 mils (0.76 mm). The appropriate thickness depends on the specific application and the level of protection required.

What is the difference between an LLDPE liner and an HDPE PE liner?

An LLDPE liner offers higher elasticity and stretch resistance for irregular loads. An hdpe pe liner (high-density polyethylene) provides higher tensile strength, higher temperature resistance, and superior puncture resistance at a thinner gauge (hdpe liner thickness).

Are all PE liners for FIBC bags suitable for direct food contact?

No. Only liners produced from 100% virgin resin in certified Cleanroom Class 100,000 facilities under BRCGS, ISO 22000, and FDA 21 CFR 177.1520 guidelines are certified food-safe.

What temperature can a standard PE liner tolerate ?

Standard LDPE and HDPE liners typically handle temperature ranges from -20°C to 70°C. For high-temperature hot-fill applications (such as molten waxes or hot resins above 80°C), specialized heat-stabilized polypropylene or high-temperature co-extruded barrier liners are required to prevent film deformation or thermal degradation.

Conclusion

Sourcing the right PE liner for FIBC bags protects your product integrity and prevents costly logistical disruptions. Whether you require standard gusseted bulk bag liners or certified conductive hdpe liners, selecting the correct film structure prevents costly product loss.

As a strategic supply chain manager, EPP Vietnam connects international buyers with Vietnam’s premier BRCGS and ISO-certified manufacturing infrastructure. We handle technical drawing verification, independent multi-stage QC inspections, and end-to-end ocean logistics (FOB, CIF, DDP).
